Chassis/safety:

• Jockey wheel
• Attachment cover
• One-key locking system
• Integrated third brake light
• Rear fog lamp
• Wheel shock absorbers
• High-resistance supports
• Licensed for speeds up to 100 km/h
• Stabiliser hook KNOTT
• Automatically adjustable overrun brake KNOTT ANS

Technical data:

• Overall length: 8331 mm
• Body length: 7168 mm
• Overall width / internal width: 2500 / 2367 mm
• Overall height / Internal headroom: 2629 / 1950 mm
• Maximum technically permissible laden mass of the vehicle: 1900 kg
• Mass in roadworthiness: 1670 kg
• Payload: 230 kg
• Technically possible payload increase up to: 2,200 kg
• Payload at maximum payload: 522 kg
• Body wall thickness (floor/roof/walls): 39/31/31 mm
• Awnings perimeter: 10920 mm
• Edging (straight edge): 5.172
• Autonomy package: front centre
• Roof-mounted air-conditioning unit: front
• TV bracket: seating area
• Fresh water tank; optional connection to city water: rear right
• External gas outlet: right rear
• Outside awning socket: front right
• Locker door MAXI, THETFORD with central locking, 1000 x 300 mm, lockable: front left
• Number of 230 V power sockets (single/dual): 5 / 2

Wheels:

• Steel rims, silver, with wheel caps
• Tyre size: 155 / 80 R 13 XL

Windows:

• Windows: folding, opening, double-glazed and tinted
• Front window with fully integrated pleated blackout blind and insect screen
• Combination cartridge with pleated blinds and insect screen for all windows (except washroom)
• Skylight DOMETIC SEITZ, Midi-Heki 700 x 500 mm, with pleated blinds and insect screen in living area
• Skylight DOMETIC SEITZ, Mini-Heki 400 x 400 mm, with pleated blinds and insect screen in the bedroom

Bodywork:

• Winter ventilation openings in seating areas, lockers and beds
• Single entrance door, extra wide, with three-point locking, window, waste bin, compartments and pleated insect screen in the door frame, design depending on model
• Rankena
• Entrance step
• Integrated awning rail
• Front/rear awning rail rain deflector with water drainage system
• Wheel arches, thermally insulated
• Wheel arch protector with rubber edge for draughts
• LED awning lighting
• Gas cabinet for 2 x 11 kg bottles
• Storage room door MAXI, THETFORD with central locking, 1000 x 300 mm, lockable

Residential area:

• Single column lifting table
• Cupboard with internal lighting
• Wall cabinets with plenty of storage space and soft-closing doors
• Compartment under the seat

Furniture finishing:

• Cape Town / White matt / Platinum

Kitchen:

• Refrigerator DOMETIC, 133 l, 10 series, including 12 l freezer compartment, with double hinges, absorption technology
• Stainless steel hob and sink with 3-burner hob, electric ignition and split glass lid
• Spice racks
• Large drawers, fully retractable, with soft-closing and push-pull locking mechanisms
• Cutlery insert
• Towel holder
• Kitchen wallpaper with integrated blackout blinds and insect screen
• Kitchen lighting, 230 V power sockets and USB charging socket
• Kitchen lighting and separate electrical sockets

Sleeping area:

• Double bed

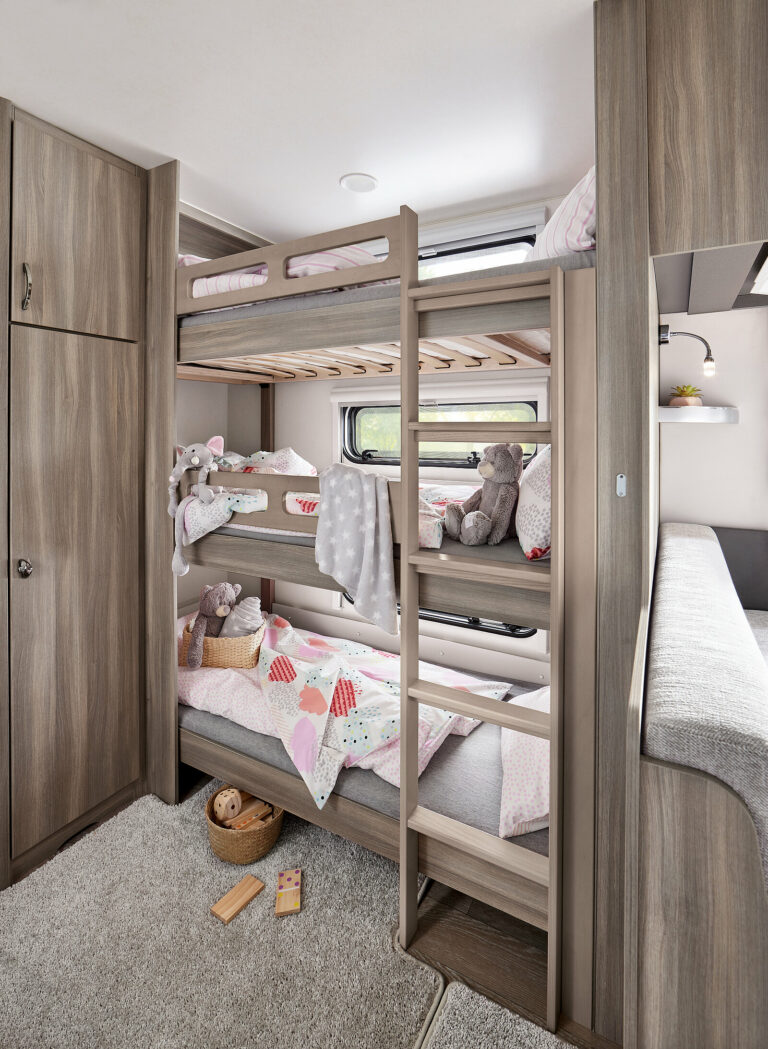

• Children's bed, 2 tiers, with guard and ladder
• Spring mattresses for single, double and twin beds
• Gas spring bed lift for double and double beds with slatted frames
• Number of beds (adults/children): 3 / 2
• Bed size, double bed (length x width): 1.950 x 1.570 / 1.280 mm
• Bed size, children's beds (length x width): 2 x 1.850 x 700 mm
• Bed size, partition to seating bed (length x width): 2.100 x 1.130 mm

WC:

• Compact washbasin with integrated shower tray and external washbasin
• Cassette toilet THETFORD
• Casement window with frosted glass that can be opened

LED lighting:

• Ambient lighting, design depends on model
• Reading lights in the seat
• Reading lights in the sleeping area
• Corner lighting in the children's seating area
• Children's bed light, adjustable, with night light and A/C USB connectors

Water/gas/electricity:

• Waste water tank, 23,5 l, rolled
• Fresh water tank, 47 litres
• Submersible pump
• Gas regulator with overpressure protection (DIN EN 12 864) and hose line
• Gas control taps in kitchen cupboards
• Control panel for lighting system and tank display
• Light switch for children
• Electronically controlled 12 V / 350 VA power supply
• Earthing circuit breaker
• External awning socket including 230 V output, satellite/TV connection
• Antenna socket with coaxial cable in a residential area
• JAEGER passenger vehicle connector, 13 poles
• Smoke alarm

Heating/air conditioning:

• TRUMA Combi 6 heating system including 10 l hot water system and frost control valve

Smart home:

• HOBBY CONNECT, control of on-board technology via the Hobby control panel and Bluetooth via an app
