Chassis:

• Built-in 3rd stop signal
• KNOTT stabilisation connector
• KNOTT ANS auto-adjusting override brake
• Jockey wheel
• Tension rod cover
• One-key locking system
• Rear fog lamp
• Wheel shock absorbers
• Tyre repair kit
• Reinforced supports
• Load indicator on jockey wheel
• Allowed to operate at speeds up to 100 km/h

Wheel system:

• Steel wheels, silver with caps

Additional information:

• Number of axles: 1
• Tyre size: 185 R 14 C
• Overall length: 7.520 mm
• Body length: 6.356 mm
• Overall width / internal width: 2.500 / 2.367 mm
• Overall height / Internal headroom: 2.637 / 1.950 mm
• Mass in running order: 1,477 kg
• Payload: 123 kg
• Technically possible load capacity increase up to: 2.000 kg
• Payload at maximum payload: 485 kg
• Body wall thickness (floor/roof/walls): 39/31/31 mm
• Perimeter of the awning: 10.120 mm
• Edging (straight edge): 4.360
• Number of beds (adults/children): 4
• Number of 230 V power sockets (single/dual): 5 / 2

Entrance area:

• Single-piece entrance door, extra wide with three-point locking, window, waste bin, compartments and folding insect screen in the door frame (design depends on model)
• Hand holder
• Entrance step

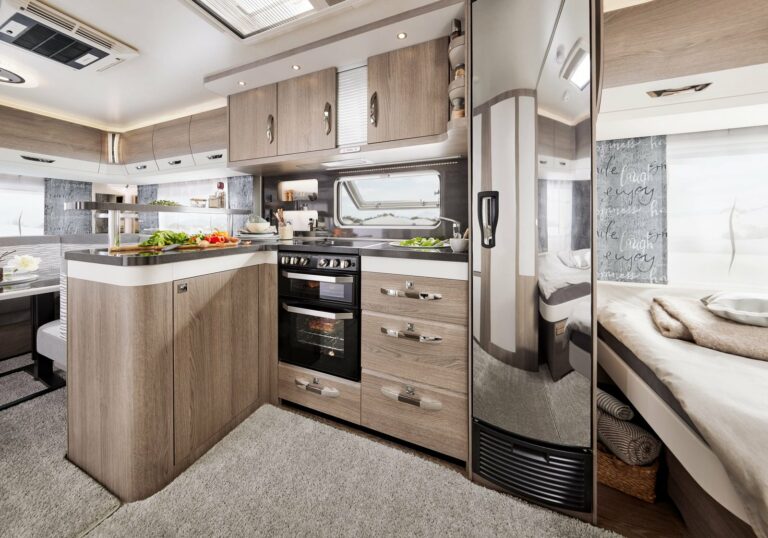

Kitchen:

• Stainless steel cooker and sink with 3-burner hob, electric ignition and split glass lid
• Tool tray
• Corner base cabinet with swivel pull-out compartment
• Spice racks
• Towel holder
• Refrigerator DOMETIC, 133 litres, series 10, including 12 litres freezer compartment, double hinges, absorption technology
• Kitchen tiles with fully integrated blackout curtain and insect screen, kitchen light, 230

Sleeping area:

• Bed size, double bed (length x width): 1.950 x 1.400 / 1.110 mm
• Bed size, converted into a seating bed (length x width): 2.233 x 2.000 / 1.350 mm

Furniture:

• MAXI cabinet door, THETFORD with central locking, 1000 x 300 mm, lockable
• Single-rack lifting table
• Heated clothes rack in the entrance area
• Wall cabinets with plenty of storage space and soft-closing doors
• Wardrobe with internal lighting
• Compartment under the seat area
• TV cabinet with illuminated shelf, Visby oak / white gloss, Cara

• Gas compartment holds 2 x 11 kg gas cylinders
• Winter ventilation for seats, cabinets and beds

Marquise:

• Integrated awning rail
• LED awning lighting

Windows and skylights:

• Combination cassette windows with pleated window cover and insect screen for all windows (except bathrooms)
• Panoramic windscreen with fully integrated blackout curtain and insect screen
• Casement window, opening, double-glazed and tinted
• Skylight DOMETIC SEITZ, Midi-Heki 700 x 500 mm, with pleated window cover and insect screen in the living space
• Skylight DOMETIC SEITZ, Mini-Heki 400 x 400 mm, with pleated window cover and insect screen in bedroom
• Skylight DOMETIC SEITZ, Mini-Heki 400 x 400 mm, with pleated window cover and insect screen in shower room
