• Standard chassis: Mercedes-Benz Sprinter 415 CDI
• Front-wheel drive
• kW (HP): 110 (150)
• Emission standards: Euro VI-E
• Length / width / height (cm): 789 / 235 / 298
• Body width / inner width (cm): 225 / 218
• Standing height in the living area (cm): 198
• Wheelbase (mm: 4500
• Mass of the running gear (-/+ 5 %) (kg)*: 3237 (3075 – 3399)*
• Manufacturer's mass (kg)* for optional equipment: 824
• Maximum technically permissible laden mass of the vehicle (kg)*: 4430
• Technically permissible maximum towable mass (kg)*: 1450
• Number of seats allowed (including the driver's)*: 4 – 5
• Floor/wall/roof insulation (mm): 41 / 34 / 34
• Overall dimensions of storage/garage doors W x H (cm): 110 x 123
• Bed dimensions: headboard L x W (cm): 207 - 202 x 90
• Bed dimensions: middle bed L x W (cm): 205 x 110 - 50
• 2 - 3 beds
• Bathroom width x depth (cm): 90 x 80
• Separate shower P x D (cm): 73 x 77
• Wardrobe H x D x H (cm): 30 x 57 x 190
• Kitchen H x D x H (cm): 107 x 58-96 x 93
• Refrigerator volume (freezer compartment) (l): 153
• Standard heating: Gas-fired warm air, 6 kW
• Gas cylinder storage (fill weight): 2x 11 kg
• Total freshwater tank capacity (l): 180
• Fresh water tank fill level (l) when driving: 20
• Waste water tank (l): 150
• Standard residential battery: 80 Ah (LFP)
• Electrical sockets: 230 V / 12 V / USB 4 / 2 / 6

Chassis/weight options

• Mercedes-Benz Sprinter 4.43 t - 415 CDI - 110 KW/150 HP - Euro VI-E

Base

• Exterior colour: white
• Exterior body colour: white
• Very Light Chassis (SLC)
• Low-frame chassis with shuttle function
• 6-speed manual gearbox
• 22 l AdBlue tank
• 92 l fuel tank
• Electrically adjustable and heated exterior mirrors
• Comfortable suspension chassis
• Engine compartment insulation and panels underneath the cab
• Rear axle mudguards
• Daytime running lights integrated in the headlamps
• Pre-assembled trailer trailer
• 16" steel wheels with full rim coverage and all-season tyres
• Electrically operated cab windows and central cab lock
• Driver and passenger airbags
• Cup holders for driver and passenger seat
• Keyless start (convenient push-button engine start)
• Open shelf on the passenger side of the cab
• ECO Start-Stop function
• Warm air auxiliary heating, electric
• ABS (Anti-lock Braking System) / ASR (Anti-Slip Regulation) / EBV (Electric Brakeforce Distribution) and ESP (Electric Stability Program)
• Active Brake Assist
• Automatic headlight control
• Intelligent Speed Support Assistant
• Crosswind assistance

Body

• Attractive, modern exterior appearance with a rounded design in smooth aluminium sheet
• Modern 3D rear design, insulated, with integrated lights
• Optimal PUAL multi-layer alloy/alloy insulation (34 mm wall and roof thickness)
• 65 cm Maxi Comfort residential door with inner casing, two-way locking, window with blackout blinds and waste bin
• Electric entrance step, 1 step
• Exclusive HYMER multi-function tail lights with LED-Hybrid technology
• Garage load up to 350 kg (optional 450 kg). Please note the axle load.
• Large garage door, LH and RH side
• Large passageway with external access on both sides, including an extra deep basement compartment and internal access
• Panoramic sunroof above the cab, manually opened
• Double underfloor heating, including basement compartments
• Lightweight fibreglass flooring with XPS insulation (floor thickness 41 mm)
• Skylight (clear glass) over the back bed(s) with blackout blinds and mosquito net, 40 x 40 cm
• HYMER panoramic skylight 80 x 50 cm, double glazed with LED lighting, living room

In the middle:

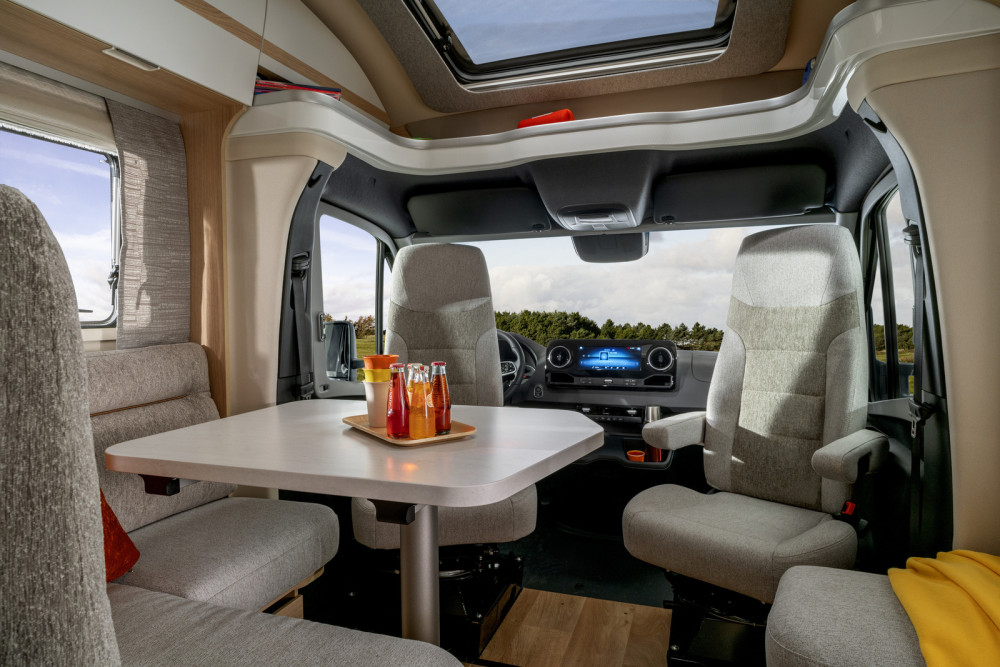

• Front seat group with 2 integrated 3-point seat belts
• Cabin blinds
• Mosquito netting on residential doors

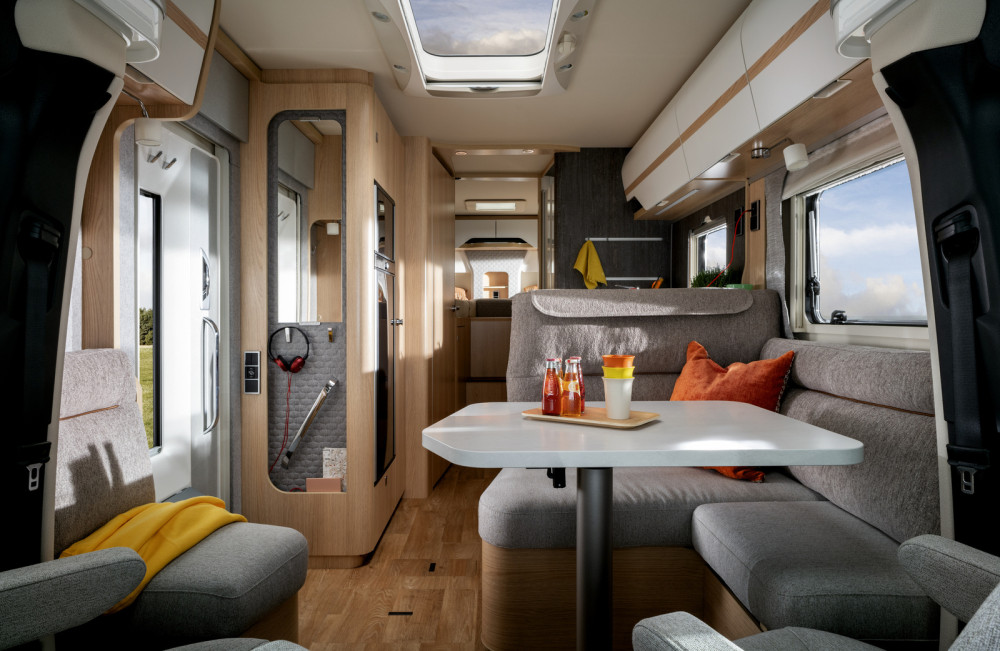

Living room and bedroom + lighting

• Multifunctional ergonomic furniture elements
• Bedroom comfort system with bed frame with cups and multi-zone cold foam mattress(es) for rear bed(s)
• Ambient lighting system: multi-level lighting system with dynamic and individual lighting control (including light temperature) and atmospheric backlighting
• Dimmable (push button)
• Full LED interior lighting
• LED tabletop lighting
• LED awning lighting

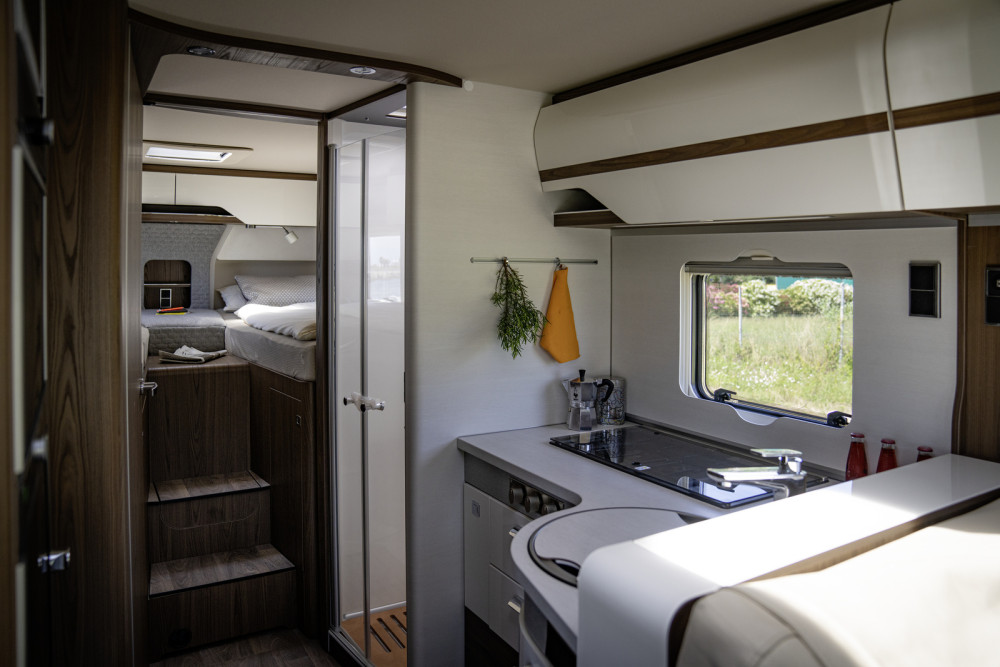

Kitchen

• Pantry
• Kitchen drawer with soft close function and cutlery insert
• Freely arranged kitchen drawers, extra wide
• Structural wall panels that also act as splash protection
• 153 l Jumbo fridge
• Extra-deep sink with tight-fitting cutting board and large water tap
• Large cooker with glass lid and front panel

Bathroom

• Skylight (frosted glass) over shower with blackout blinds, mosquito net and integrated clothes rack, 40 x 40 cm
• Skylight (frosted glass) for bathroom with blackout blinds and mosquito net, 40 x 40 cm

Installation and technology

• 6 kW gas-fired warm air heating with 10 l hot water boiler
• LCD heating keypad
• "HYMER Connect for controlling and monitoring smart car functions using the HYMER Connect app.
• 7-inch touchscreen for convenient control and monitoring of smart car functions
• Extra-low gas cylinder compartment for easy gas cylinder exchange, with easy access through the outer door
• HYMER Intelligent Battery System 2.0 (80 Ah LFP) with optional charger
• Charging booster for safe charging of a residential battery while driving (up to 70 A)
• Dual USB connectors in the seat group
• 180 l fresh water tank, insulated and heated (20 l in driver's seat)
• 150 l insulated and heated waste water tank
• Electric drain with dashboard switch

Multimedia

• Pre-fitted radio/TV including 12V and 230V sockets, 2 speakers in the cab, front bed and rear, radio receiver and DVB-T2 aerial

Fabrics and upholstery

• Furniture finish: Grand Oak
• Combination of fabrics.

Packages:

Standard equipment
