• Standard chassis: Mercedes-Benz Sprinter 315 CDI
• Front-wheel drive
• kW (HP): 110 (150)
• Emission standards: Euro VI-E
• Length / width / height (cm): 699 / 229 / 298
• Body width / inner width (cm): 219 / 212
• Standing height in living space (cm): 198
• Wheelbase (mm): 3900
• Mass of the running gear (-/+ 5 %) (kg)*: 3061 (2908 – 3214)*
• Manufacturer's mass (kg)* for optional equipment: 64
• Maximum technically permissible laden mass of the vehicle (kg)*: 3500
• Technically permissible maximum towable mass (kg)*: 2000
• Number of seats allowed (including the driver's)*: 4
• Floor/wall/roof insulation (mm): 41 / 34 / 34
• Overall dimensions of storage/garage doors W x H (cm): 90 x 123
• Bed dimensions: folding bed L x W (cm): 194 x 145 / 2x 194 x 65
• Bed dimensions: headboard L x W (cm): 2x 192 x 86 / 215 x 86 / 192 x 86
• Bed dimensions: centre bed L x W (cm): 172 x 70
• Sleeping places: 4
• Bathroom width x depth (cm): 125 x 85
• Wardrobe W x D x H (cm): 22 x 55 x 188
• Kitchen width x depth x height (cm): 94 x 59 x 93
• Refrigerator volume (freezer compartment) (l): 142
• Standard heating: gas-fired warm air, 6 kW
• Gas cylinder storage (fill weight): 2x 11 kg
• Total freshwater tank capacity (l): 180
• Fresh water tank fill level (l) when driving: 20
• Waste water tank (l): 150
• Standard residential battery: 80 Ah (LFP)
• Electrical sockets: 230 V / 12 V / USB 4 / 2 / 4

Chassis/weight options

• Mercedes-Benz Sprinter 3.5 t - 315 CDI - 110 KW/150 HP - Euro VI-E

Base

• Smooth aluminium upholstery, colour: Carrara white
• Very Light Chassis (SLC)
• 6-speed manual gearbox
• 92 l fuel tank
• 22 l AdBlue tank
• Hinged exterior mirrors, car colour, electrically heated and adjustable, including a wide-angle mirror
• Comfortable suspension chassis
• HYMER headlamps integrate LED daytime running lights and LED indicator
• Engine compartment insulation and panels underneath the cab
• Front and rear axle mudguards
• Pre-installed trailer hitch
• 16" steel wheels with full rim coverage and all-season tyres
• Cup holder instead of storage
• ECO Start-Stop function
• Driver and passenger airbags
• Driver and passenger seat cup holder
• Keyless start (push-button start/stop button for easy engine start)
• Open shelf on the passenger side of the cab
• Warm air auxiliary heating, electric
• ABS (Anti-lock Braking System) / ASR (Anti-Slip Regulation) / EBV (Electric Brakeforce Distribution) and ESP (Electric Stability Program)
• Active Brake Assist
• Automatic headlight control
• Intelligent Speed Support Assistant
• Crosswind assistance

Body

• Optimum PUAL multi-layer insulation alloy/alloy (34 mm wall and roof thickness)
• 60 cm Maxi Comfort habitation door including window with blackout blinds and waste bin
• Electric entrance step, 1 step
• External flap for external loading of L-shaped seat cluster, LH side
• Exclusive HYMER multi-function tail lights with LED-Hybrid technology
• Cabin doors with electric windows and entrance lighting
• Large load compartment with external access, including an extra-deep basement compartment and internal access
• Garage load up to 350 kg (optional 450 kg). Please note the axle load.
• Large garage door, LH and RH side
• Double underfloor heating, including basement compartments
• Lightweight fibreglass flooring with XPS insulation (floor thickness 41 mm)
• Skylight (clear glass) over the back bed(s) with blackout blinds and mosquito net, 40 x 40 cm
• HYMER panoramic skylight 80 x 50 cm, double glazed with LED lighting, living room
• Opening window with curtain blind and mosquito net, LH side, rear

Equipment

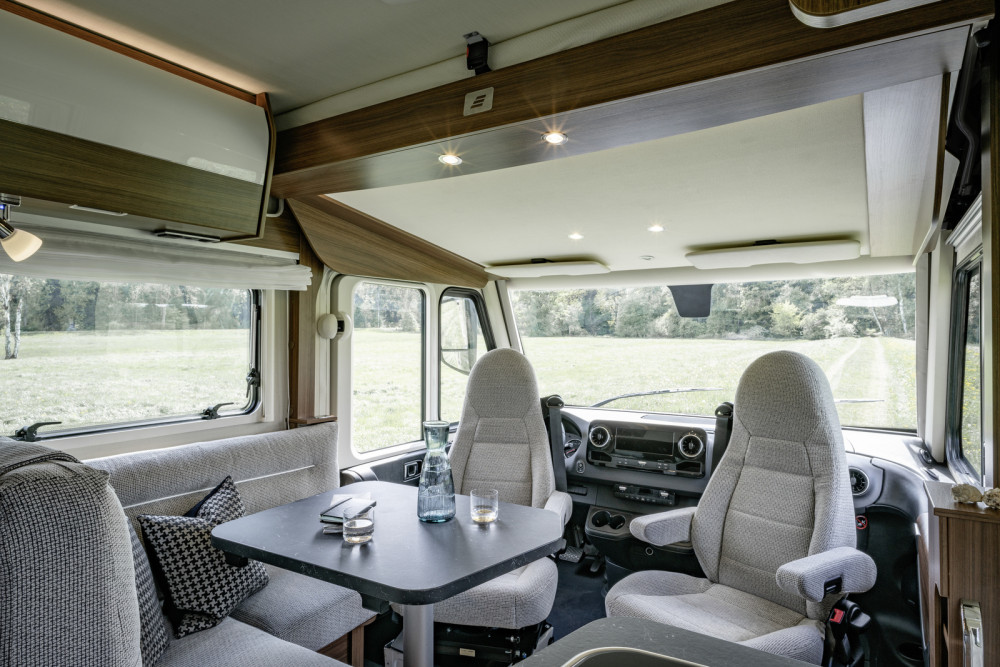

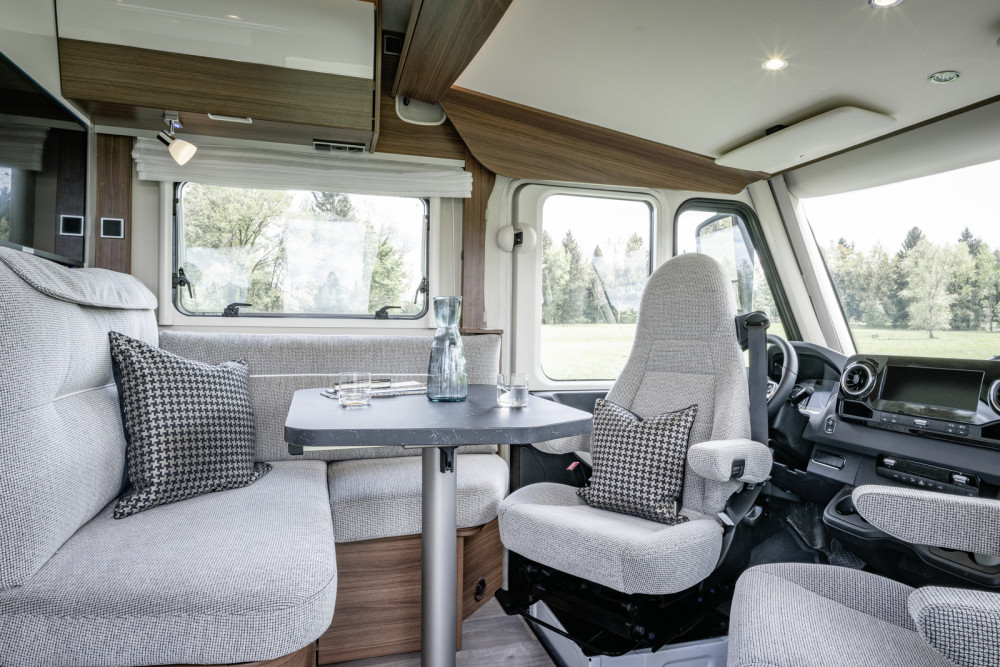

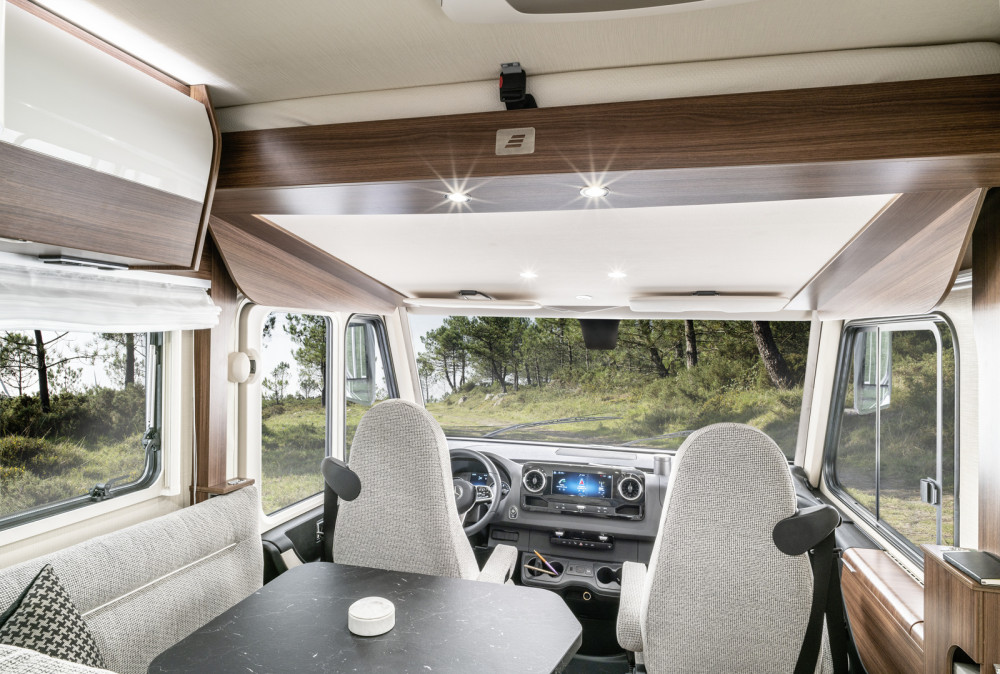

• Cabin seats, upholstered in living area fabric, swivel, height and tilt adjustable, with 2 armrests
• Comfortable L-shaped seat group with Lounge cushions and 2 integrated 3-point seat belts
• Luxury table: 360° rotatable, longitudinally and transversally movable
• Cabin blinds in high quality pleated material
• Mosquito netting on residential doors

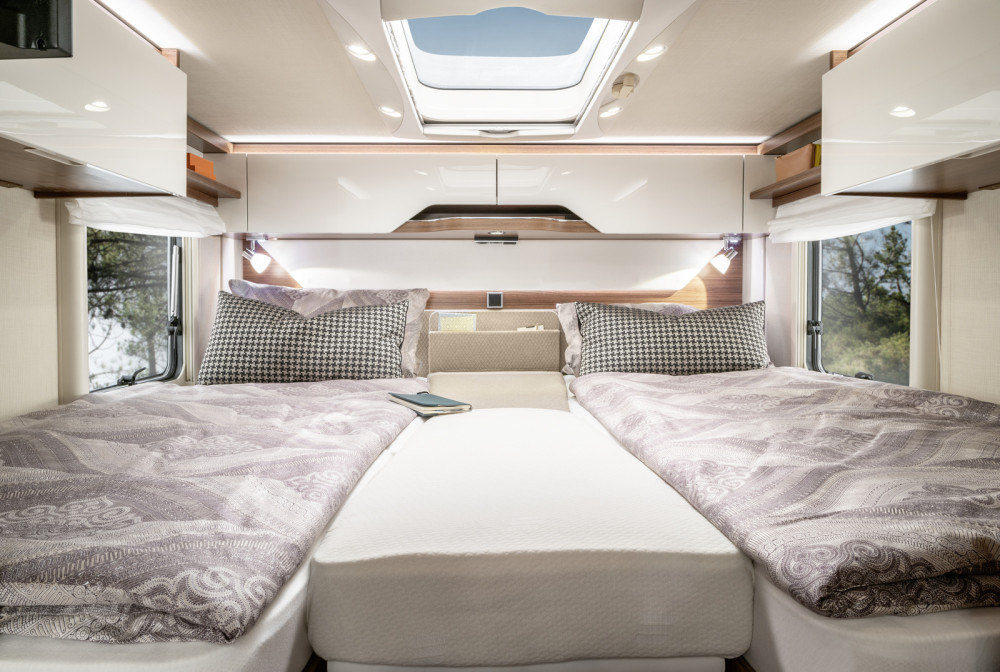

Living room and bedroom + lighting

• Manual lowering bed
• Multifunctional ergonomic furniture elements
• Multi-zone cold foam mattress with high quality mattress cover (knitted fabric) for rear ventilation
• Full LED interior lighting
• LED tabletop lighting
• Night lighting with toggle switch
• LED awning lighting
• Dimmable (push button)

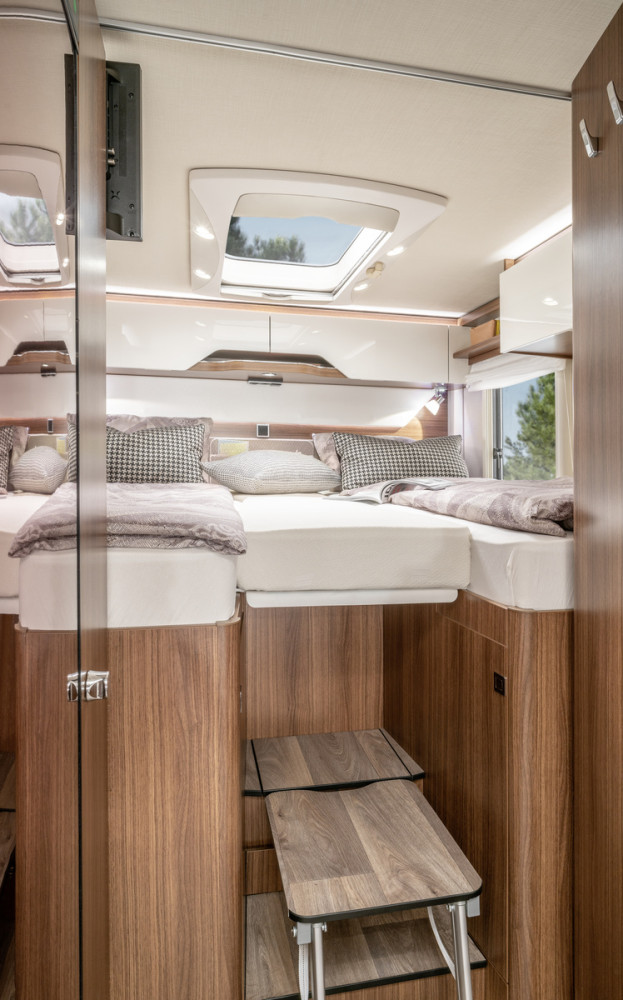

• Ladders for drop-down beds

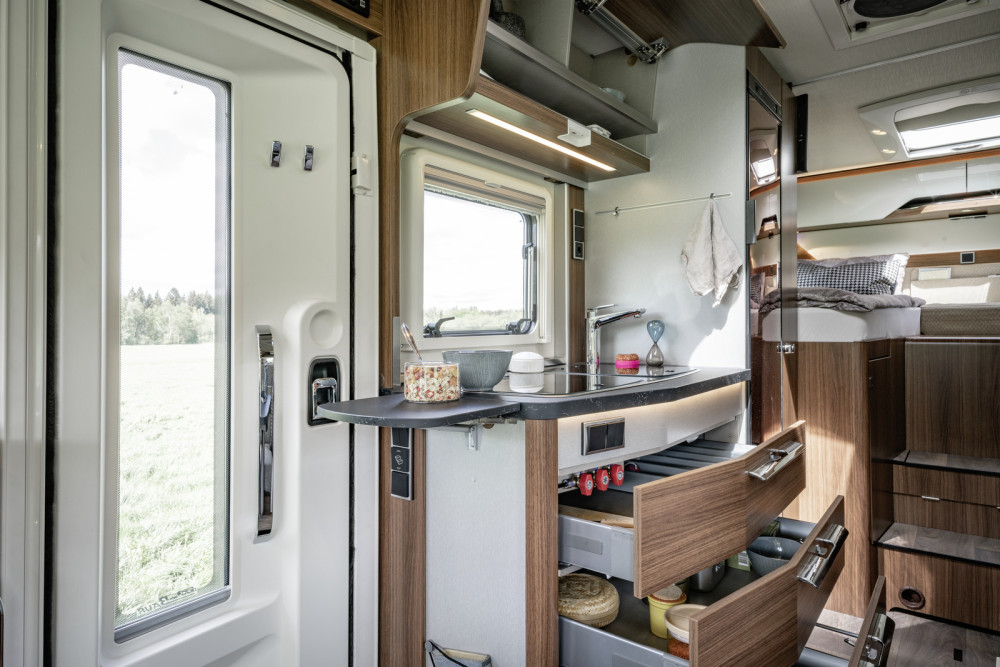

Kitchen

• Kitchen drawer with soft-close function and cutlery insert
• Freely arranged kitchen drawers, extra wide
• 142 l Smart-Tower fridge

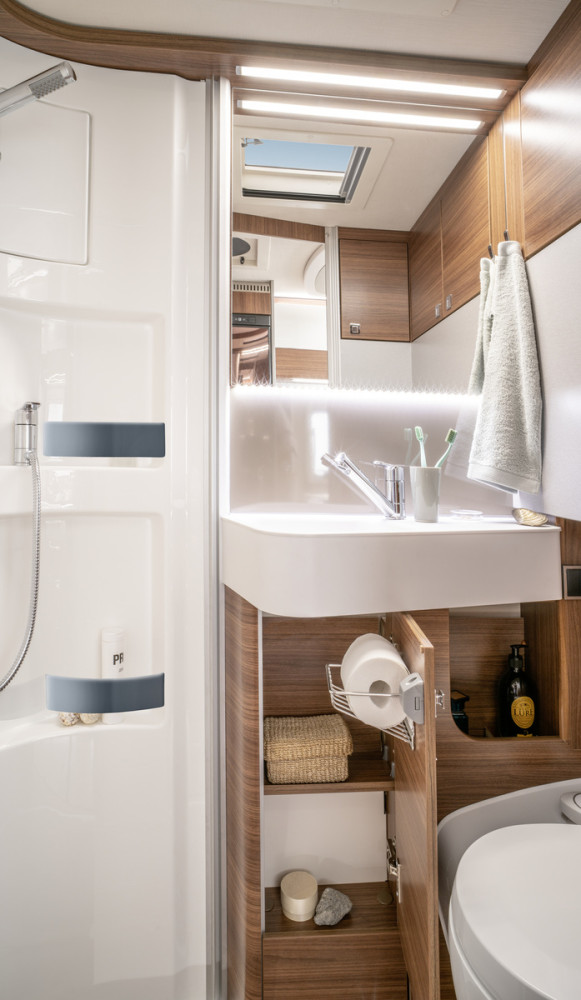

Bathroom

• Skylight (frosted glass) for bathroom with blackout blinds and mosquito net, 40 x 40 cm

Installation and technology

• 6 kW gas-fired warm air heating with 10 l hot water boiler
• LCD heating keypad
• "HYMER Connect for controlling and monitoring smart car functions using the HYMER Connect app.
• Cabin heating concept with enhanced warm air heating, including a heated dashboard in living areas
• 7" touchscreen for convenient control and monitoring of smart vehicle functions
• Charging booster for safe charging of the residential battery while driving (up to 70 A)
• HYMER Intelligent Battery System 2.0 (80 Ah LFP) including optional charger
• 180 l fresh water tank, insulated and heated (20 l at the driving position)
• 150 l insulated and heated waste water tank
• Dual USB connectors in the seat group
• Electric drain with dashboard switch

Multimedia

• Pre-fitted radio/TV including 12V and 230V sockets, 2 speakers in the cab, front bed and rear bedroom, radio and DVB-T2 aerial

Fabrics and upholstery

• Furniture finish: Grand Oak
• Fabric Combination:Furniture Combination:Bogota

Packages

• Standard equipment
