• Standard chassis: Fiat Ducato
• Front-wheel drive
• kW (HP): 103 (140)
• Length / width / height (cm): 664 / 222 / 279
• Body width / inner width (cm): 212 / 205
• Standing height in living space (cm): 198
• Wheelbase (mm): 3550
• Mass of the running gear (-/+ 5 %) (kg)*: 2934 (2787 – 3081)*
• Manufacturer's mass (kg)* for optional equipment: 225
• Maximum technically permissible laden mass of the vehicle (kg)*: 3500
• Maximum technically permissible towing mass (kg)*: 2000
• Number of seats allowed (including the driver's)*: 4
• Floor/wall/roof insulation (mm): 41 / 34 / 34
• Overall dimensions of storage/garage doors W x H (cm): 99 x 108
• Bed dimensions: folding bed L x W (cm): 188 x 150

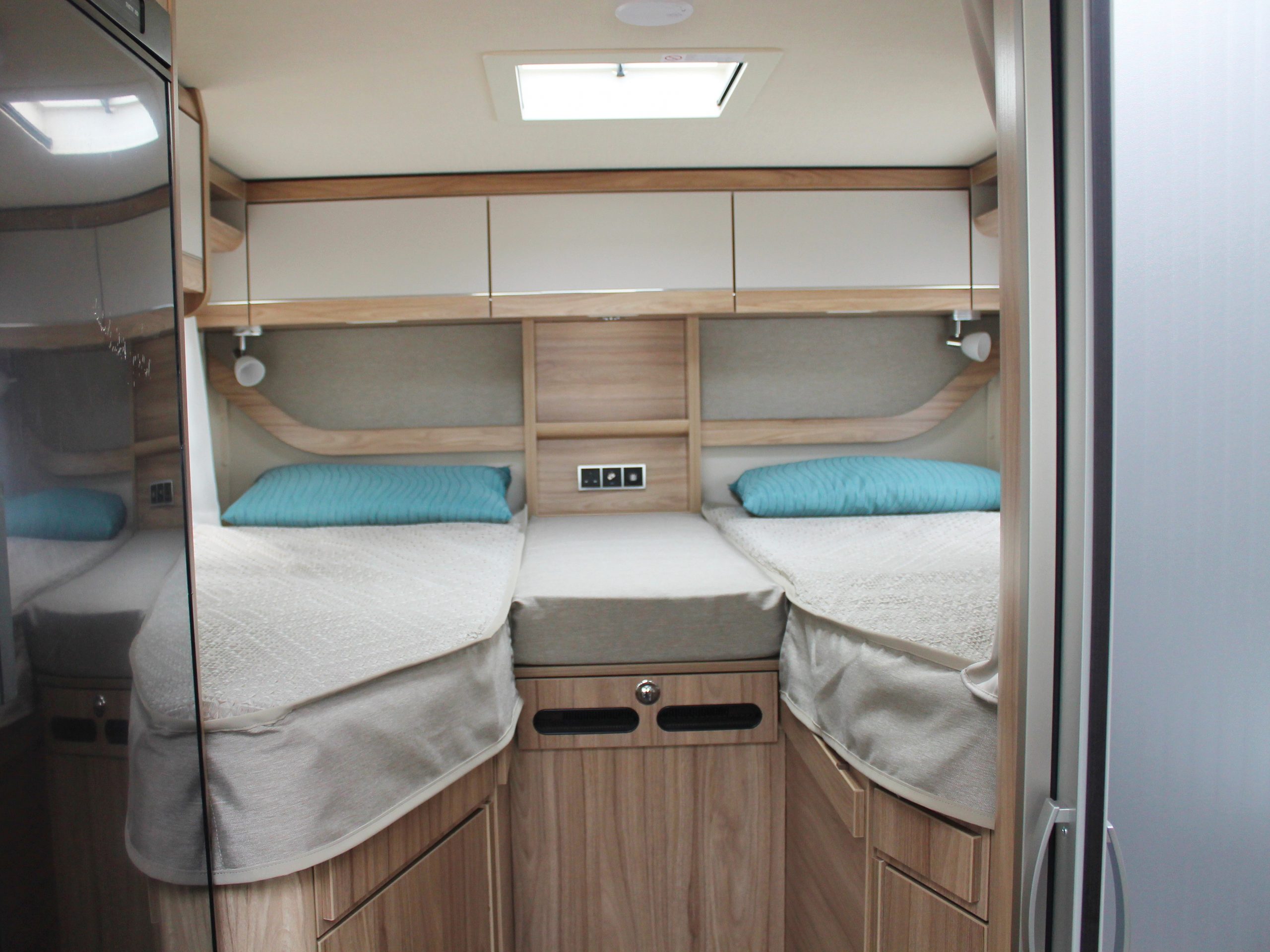

• Bed dimensions: headboard L x W (cm): 2x 190 x 80
• Bed dimensions: centre bed L x W (cm): 165 x 78
• 4 - 5 beds

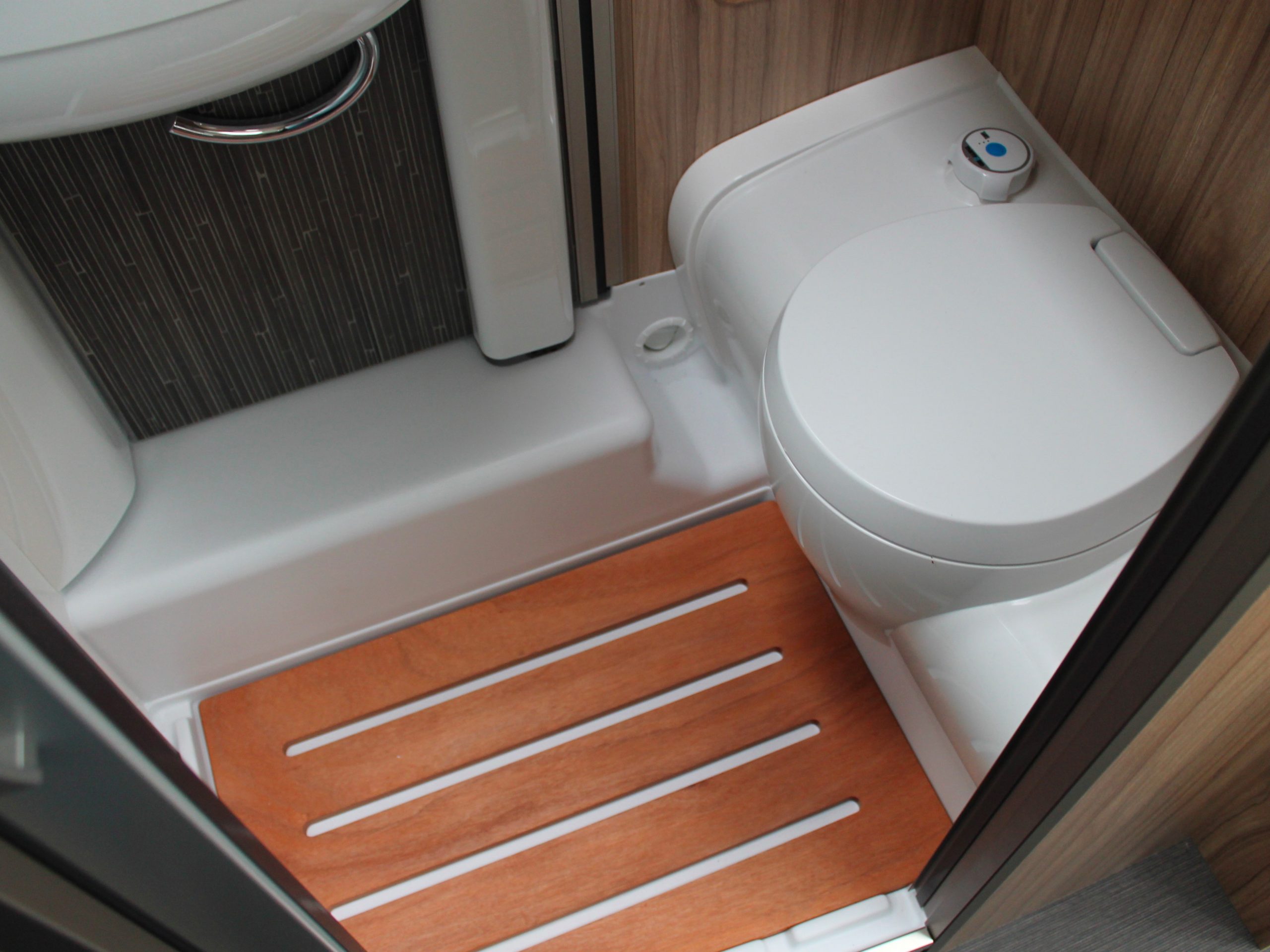

• Bathroom width x depth (cm): 105 x 83

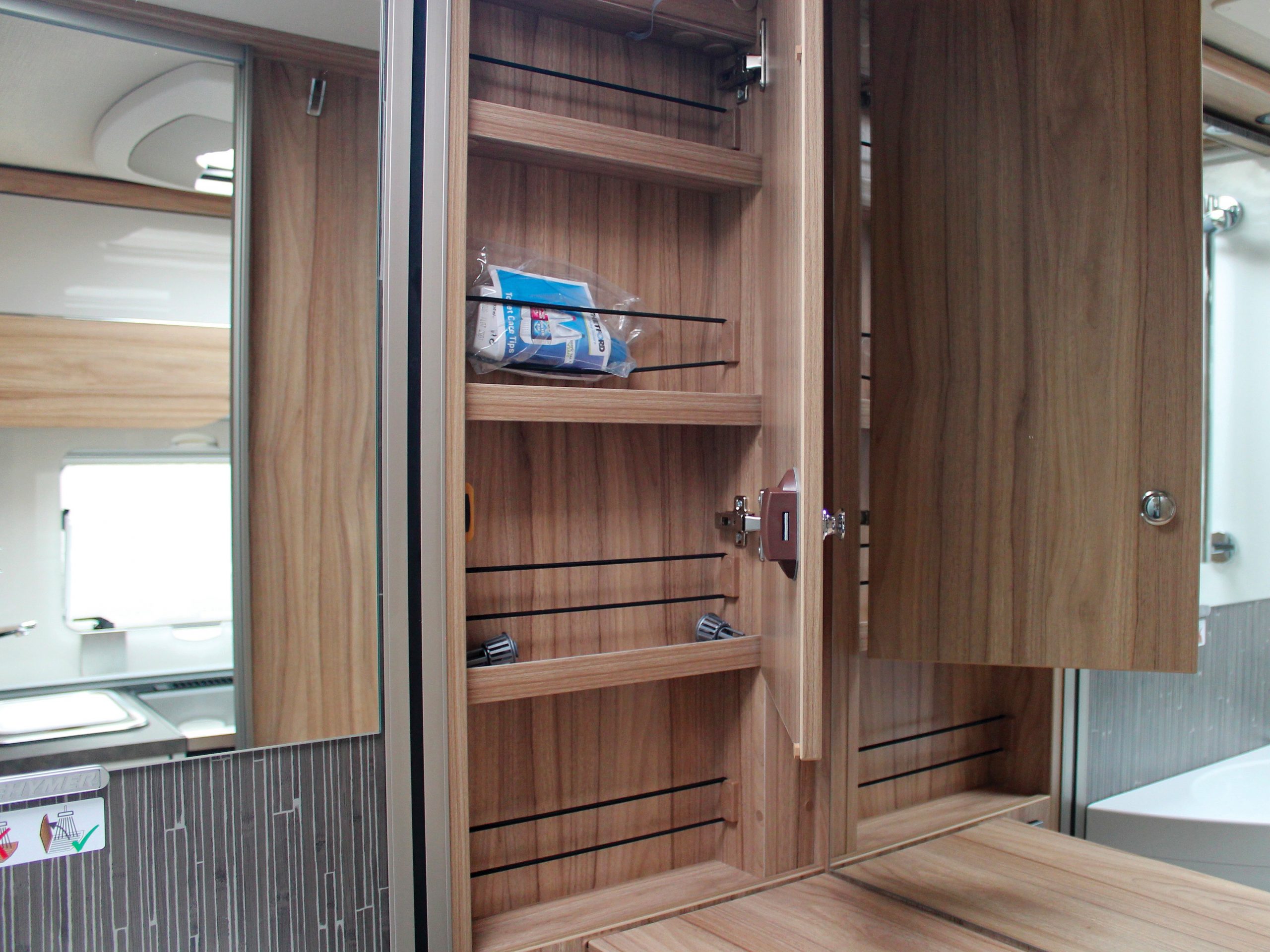

• Wardrobe H x D x H (cm): 42 x 54 x 190
• Kitchen width x depth x height (cm): 92 x 60 x 93
• Refrigerator volume (freezer compartment) (l): 142
• Standard heating: gas-fired warm air, 6 kW
• Gas cylinder storage (fill weight): 2x 11 kg
• Total freshwater tank capacity (l): 115
• Fresh water tank fill level (l) when driving: 20
• Waste water tank (l): 105
• Standard residential battery: 95 Ah (AGM)
• Electrical sockets: 230 V / 12 V / USB 5 / 2 / 2

Chassis/weight options

• Fiat Ducato 3,5 t - 2.2 MultiJet - 103 KW/140 HP - Euro 6E

Base

• Exterior body colour: white
• AL-KO frame
• 8G automatic gearbox
• 90 l fuel tank
• 19 l AdBlue tank
• Hinged exterior mirrors, car colour, electrically heated and adjustable, including a wide-angle mirror
• HYMER headlamps integrate LED daytime running lights and LED indicator
• Special coil springs for the front axle
• Front and rear axle mudguards
• 16" steel wheels (Maxi chassis or automatic gearbox only)
• M+S all-season tyres (with snowflake symbol)
• Dashboard tray instead of tablet holder
• Driver and passenger airbags
• 1x double USB socket in the cab
• Driver and passenger seat cup holder
• Manual air conditioner with pollen filter

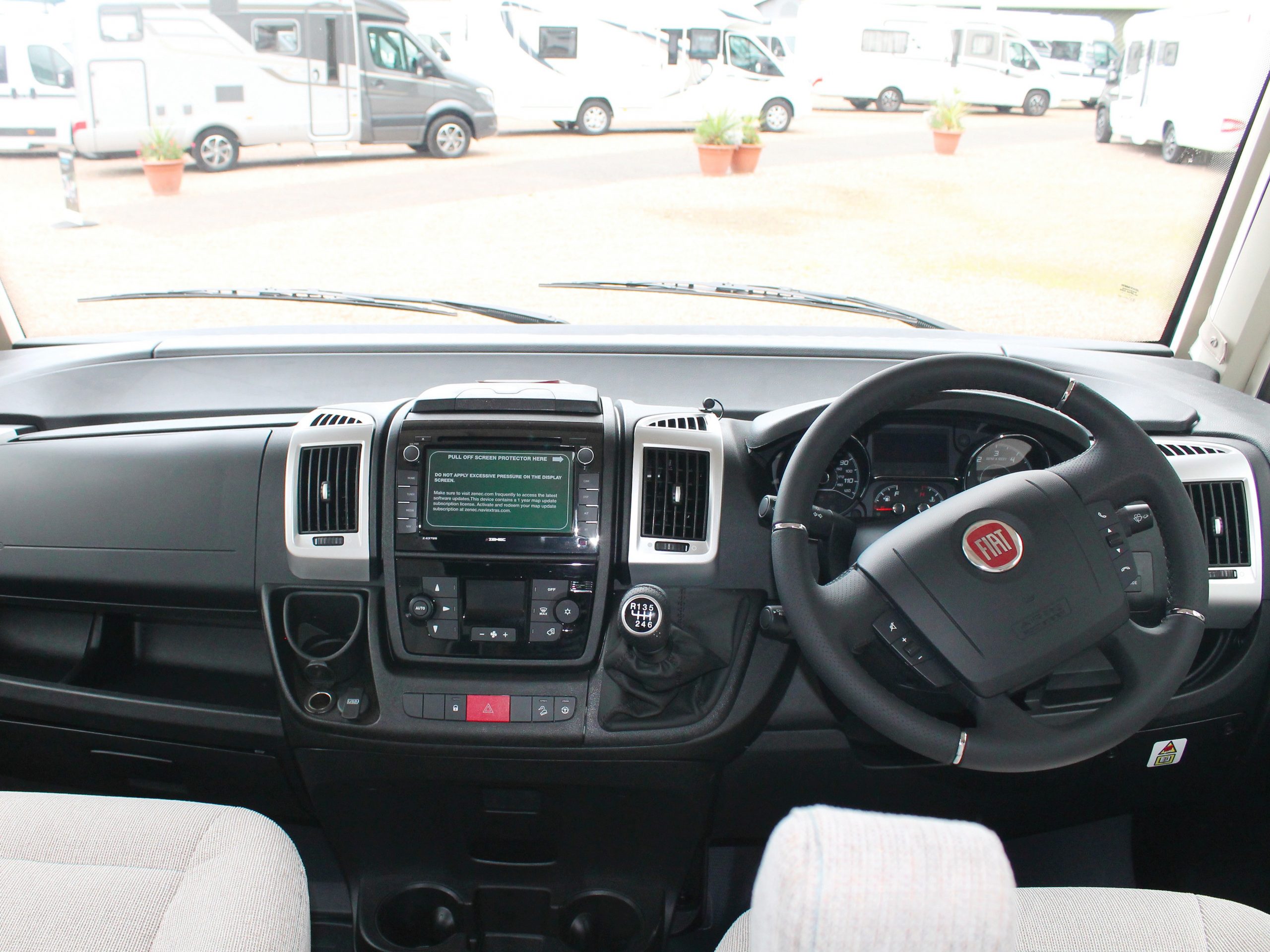

• Multi-function steering wheel
• "Start-Stop-System, including a smart generator
• ABS (Anti-lock Braking System) / EBD (Electric Brakeforce Distribution)
• ESP, including ASR, TRACTION PLUS and hill holder
• Post-collision brake control
• Crosswind assistance
• "Fiat Cruise Control

Body

• Optimal PUAL multi-layer alloy/alloy insulation (34 mm wall and roof thickness)
• Cabin doors with electric windows and entrance lighting
• Maxi Comfort habitation door 60 cm long, including window with blackout blinds and waste bin
• Electric entrance step, 1 step
• Garage load up to 350 kg (optional 450 kg). Please note the axle load.
• Large garage door, left and right side
• Exclusive HYMER multi-function tail lights with LED-Hybrid technology
• Lightweight fibreglass flooring with XPS insulation (41 mm floor thickness)
• HYMER panoramic skylight 80 x 50 cm with double glazing and LED lighting in the living room
• Skylight (clear glass) over the back bed(s) with blackout blinds and mosquito net, 40 x 40 cm
• Opening windows with retractable blinds and mosquito net, LH and RH side, rear

Equipment

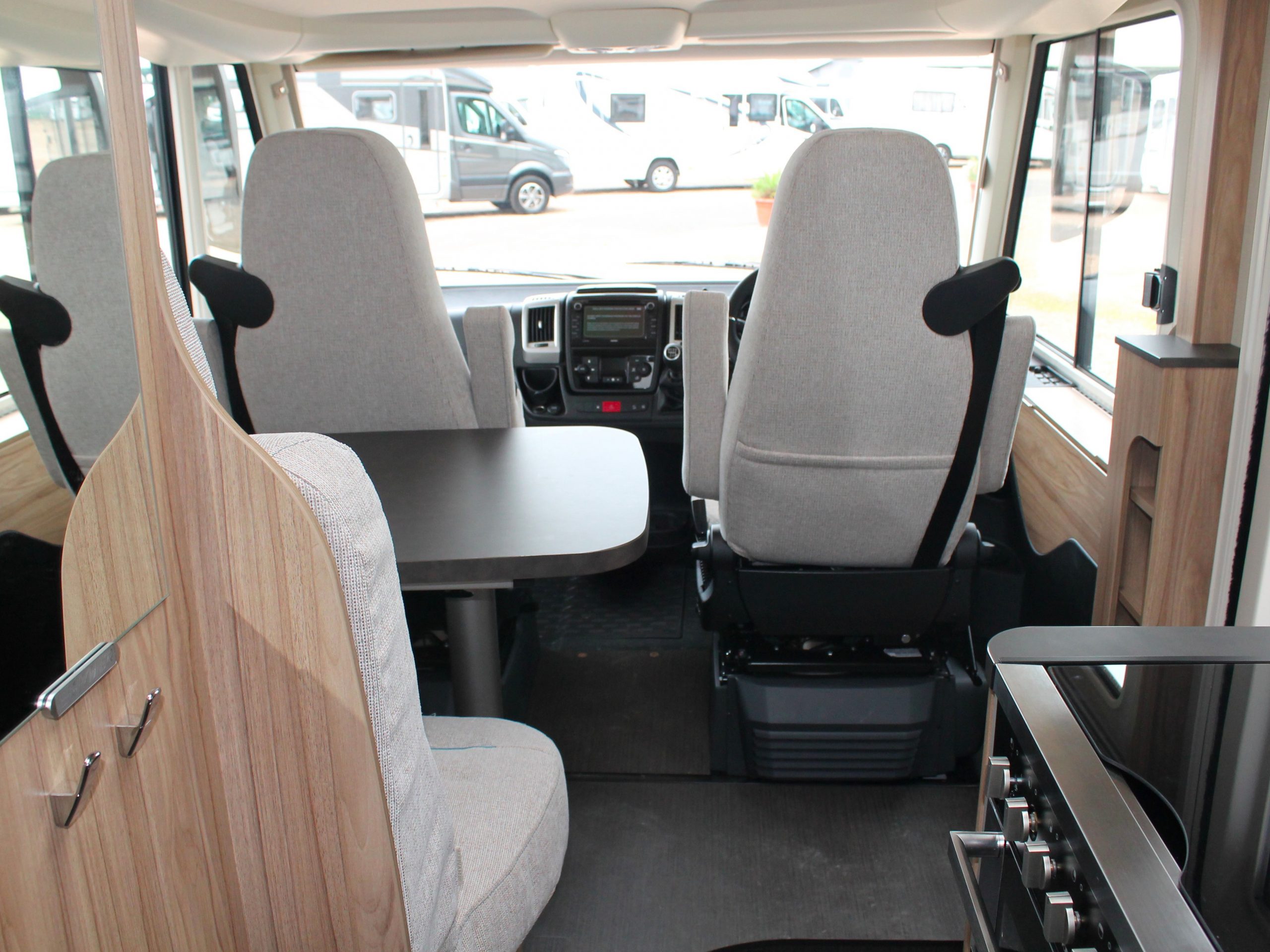

• Cabin seats upholstered in living area fabric, swivel, with 2 armrests

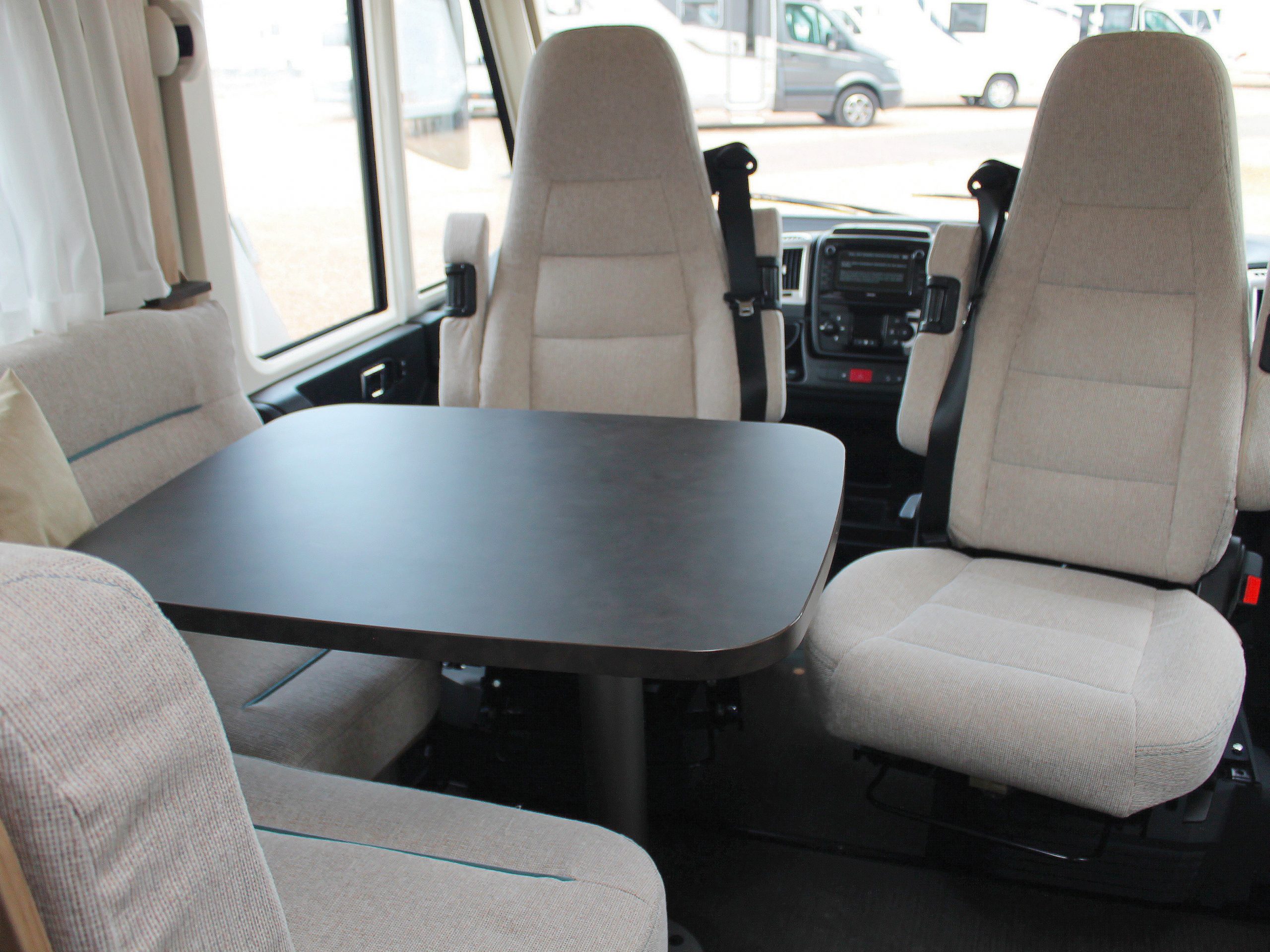

• Comfortable L-shaped seat group with Lounge cushions and 2 integrated 3-point seat belts
• Luxury table: 360° swivel, longitudinal and transversal movement
• Cabin blinds in high quality pleated material
• Mosquito netting on residential doors

Living room and bedroom + lighting

• Manual lowering bed
• Folding bed ladders
• Multi-zone cold foam mattress with high quality mattress pad (knitted fabric) for rear ventilation
• Full LED interior lighting
• LED tabletop lighting
• LED awning lighting

Kitchen

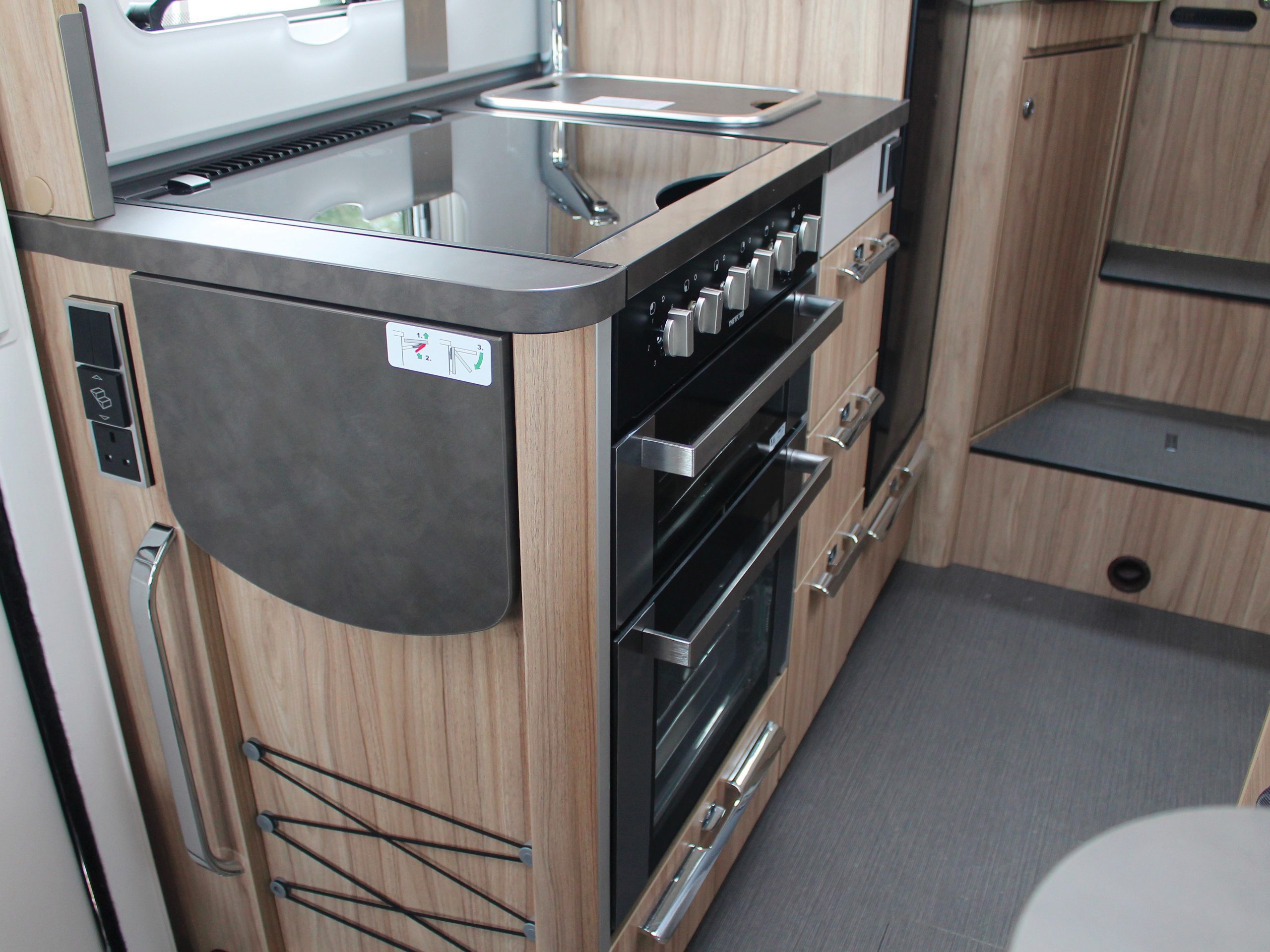

• Kitchen drawer with soft-close function and cutlery insert
• Freely arranged kitchen drawers, extra wide
• 142 l Smart-Tower fridge

Bathroom

• Skylight (frosted glass) for bathroom with blackout blinds and mosquito net, 40 x 40 cm

Installation and technology

• 6 kW gas-fired warm air heating with 10 l hot water boiler
• Pedestal at the seating group, heated by warm air
• Cabin heating concept with enhanced warm air heating, including a heated dashboard in the living area

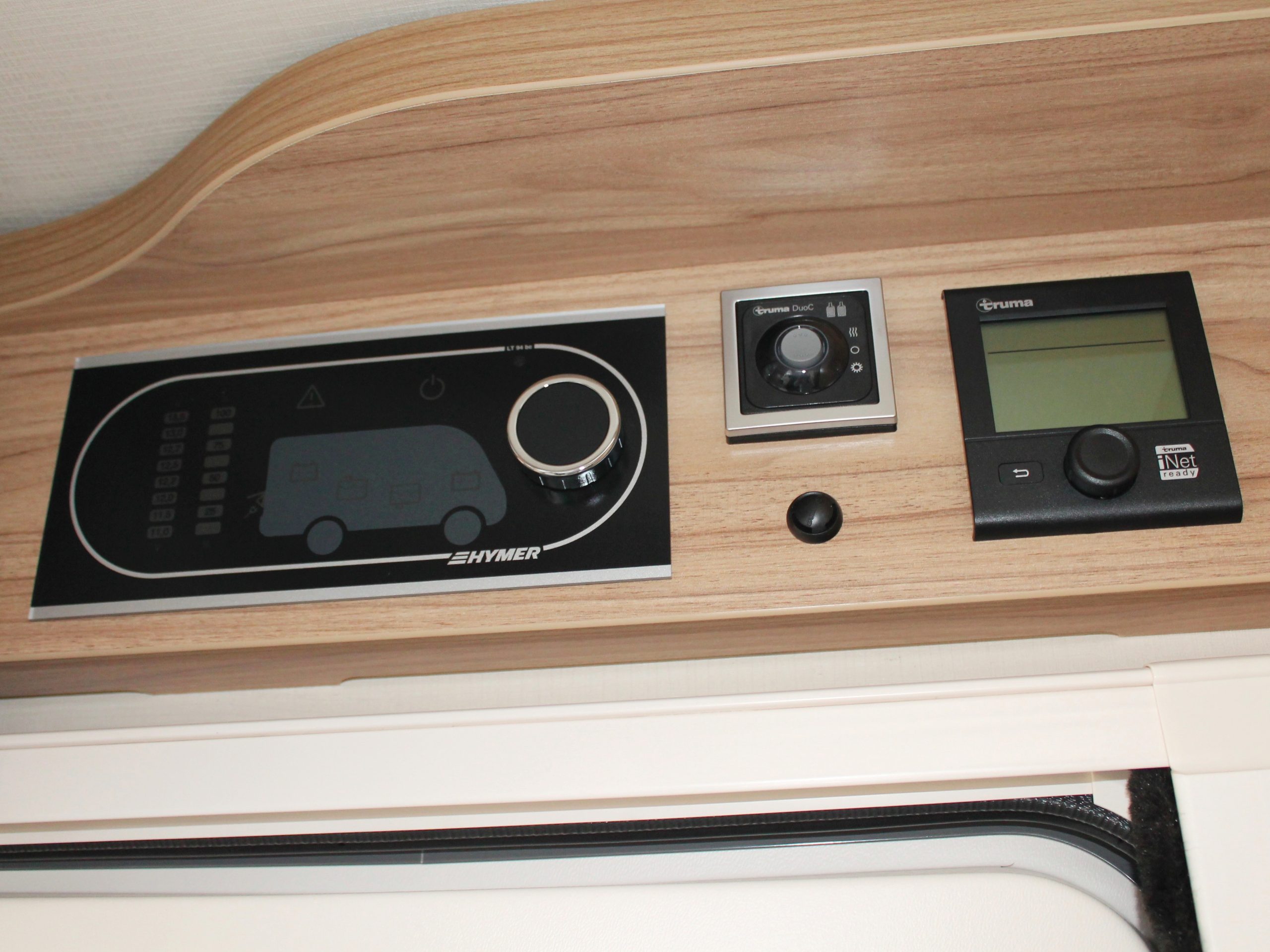

• LCD heating keypad
• Gas cylinder compartment accessed via external valve/door
• Reinforced battery, 12 V, 95 Ah AGM
• Charge booster to safely charge a residential battery while driving (up to 70 A)
• 115 l fresh water tank, insulated and heated (20 l at the driving position)
• 105 l insulated and heated waste water tank

Multimedia

• Pre-fitted radio/TV including 12V and 230V sockets, 2 speakers in the cab, front bed and rear bedroom, radio and DVB-T2 aerial

Fabrics and upholstery

• Furniture finish: Sauvignon oak with Tip Printed
• Fabric combination: corfu
