• Standard chassis: Fiat Ducato
• Front-wheel drive
• kW (HP): 103 (140)
• Length / width / height (cm): 699 / 222 / 283
• Body width / inner width (cm): 212 / 205
• Standing height in living space (cm): 198
• Wheelbase (mm): 3800
• Mass of the running gear (-/+ 5 %) (kg)*: 3065 (2912 – 3218)*
• Manufacturer's mass (kg)* for optional equipment: 80
• Maximum technically permissible laden mass of the vehicle (kg)*: 3500
• Technically permissible maximum towable mass (kg)*: 2000
• Number of seats allowed (including the driver's)*: 4
• Floor/wall/roof insulation (mm): 41 / 34 / 34
• Overall dimensions of storage/garage doors W x H (cm): 85 x 109 / 75 x 85
• Bed dimensions: folding bed L x W (cm): 188 x 150
• Bed dimensions: headboard L x W (cm): 195 x 80 / 191 x 80 / 218 x 80 / 191 x 80
• Bed dimensions: centre bed L x W (cm): 165 x 78
• 4 - 5 beds
• Bathroom width x depth (cm): 125 x 85
• Wardrobe H x D x H (cm): 27 x 54 x 160
• Kitchen width x length x height (cm): 90 x 60 x 93
• Refrigerator volume (freezer compartment) (l): 142
• Standard heating: gas-fired warm air, 6 kW
• Gas cylinder storage (fill weight): 2x 11 kg
• Total freshwater tank capacity (l): 120
• Fresh water tank fill level (l) when driving: 20
• Waste water tank (l): 90
• Standard residential battery: 95 Ah (AGM)
• Electrical sockets: 230 V / 12 V / USB 4 / 2 / 4

Chassis/weight options

• Fiat Ducato 3,5 t - 2.2 MultiJet - 103 KW/140 HP - Euro 6E

Base

• Exterior body colour: white
• Fiat Ducato low-floor chassis
• 6G manual gearbox
• 90 l fuel tank
• 19 l AdBlue tank
• Outside mirror, wide armrest version
• Hinged exterior mirrors, car colour, electrically heated and adjustable, including a wide-angle mirror
• HYMER headlamps integrate LED daytime running lights and LED indicator
• Front and rear axle mudguards
• 16-inch alloy wheels (light chassis only)
• M+S all-season tyres (with snowflake symbol)
• 1x double USB socket in the cab
• Dashboard tray instead of tablet holder
• Aluminium applications for ventilation nozzles
• Driver and passenger airbags
• Driver and passenger seat cup holder
• Leather steering wheel and gear lever
• Manual air conditioner with pollen filter
• Multi-function steering wheel
• ABS (Anti-lock Braking System) / EBD (Electric Brakeforce Distribution)
• ESP with ASR, TRACTION PLUS and hill holder
• Post-collision brake control
• Crosswind assistance
• "Start-Stop-System, including a smart generator
• "Fiat Cruise Control

Body

• Awning with adapter, white or silver body, 450 x 250 cm
• Attractive, modern exterior appearance with a rounded design in smooth aluminium sheet
• Optimal PUAL multi-layer alloy/alloy insulation (34 mm wall and roof thickness)
• 60 cm Maxi Comfort residential door with window with blackout blinds and waste bin
• Electric entrance step, 1 step
• Exclusive HYMER multi-function tail lights with LED-Hybrid technology
• Cabin doors with electric windows and entrance lighting
• External storage lid, 75 x 85 cm, left side
• Garage load up to 350 kg (optional 450 kg). Please note the axle load.
• Large garage door, RH side
• Lightweight fibreglass flooring with XPS insulation (floor thickness 41 mm)
• Service flap for easy access to on-board electronics, LH side
• Skylight (clear glass) over the back bed(s) with blackout blinds and mosquito net, 40 x 40 cm
• HYMER panoramic skylight 80 x 50 cm with double glazing and LED lighting, living room
• Opening windows with blackout blinds and mosquito netting, LH and RH side, rear

Equipment

• Cabin seats upholstered in living area fabric, swivel, with 2 armrests
• Mosquito netting on residential doors
• Cabin blinds in high quality pleated material

Living room and bedroom + lighting

• Convenient bed conversion L-shaped seating group with additional pillow and drop-down table with booth seat

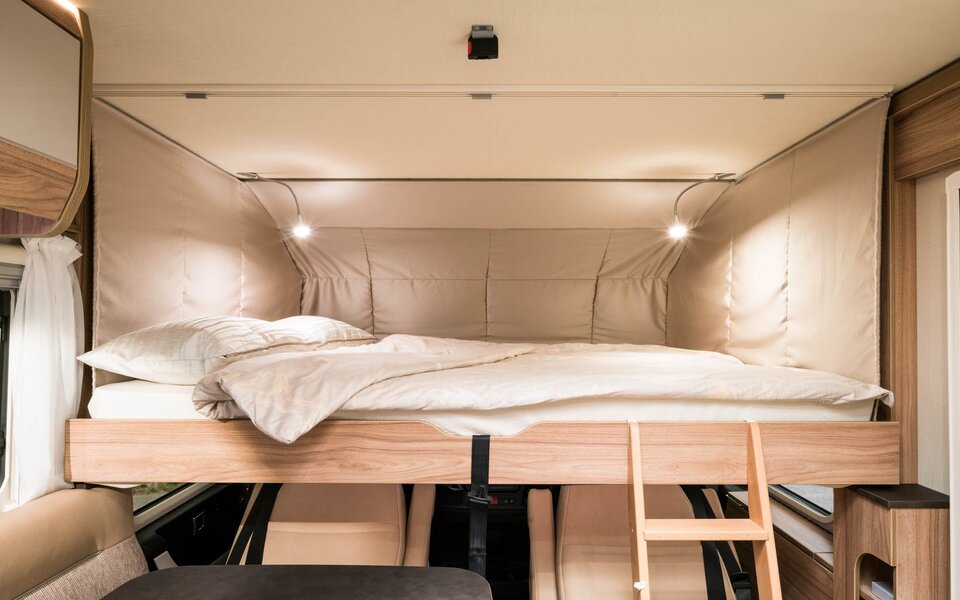

• Manual lowering bed
• Cold foam mattress with high quality mattress pad (knitted fabric) for better rear ventilation
• Comfortable L-shaped seat cluster with lounge cushions, longitudinal/transverse sliding table and 2 built-in 3-point safety belts
• Multifunctional ergonomic furniture elements

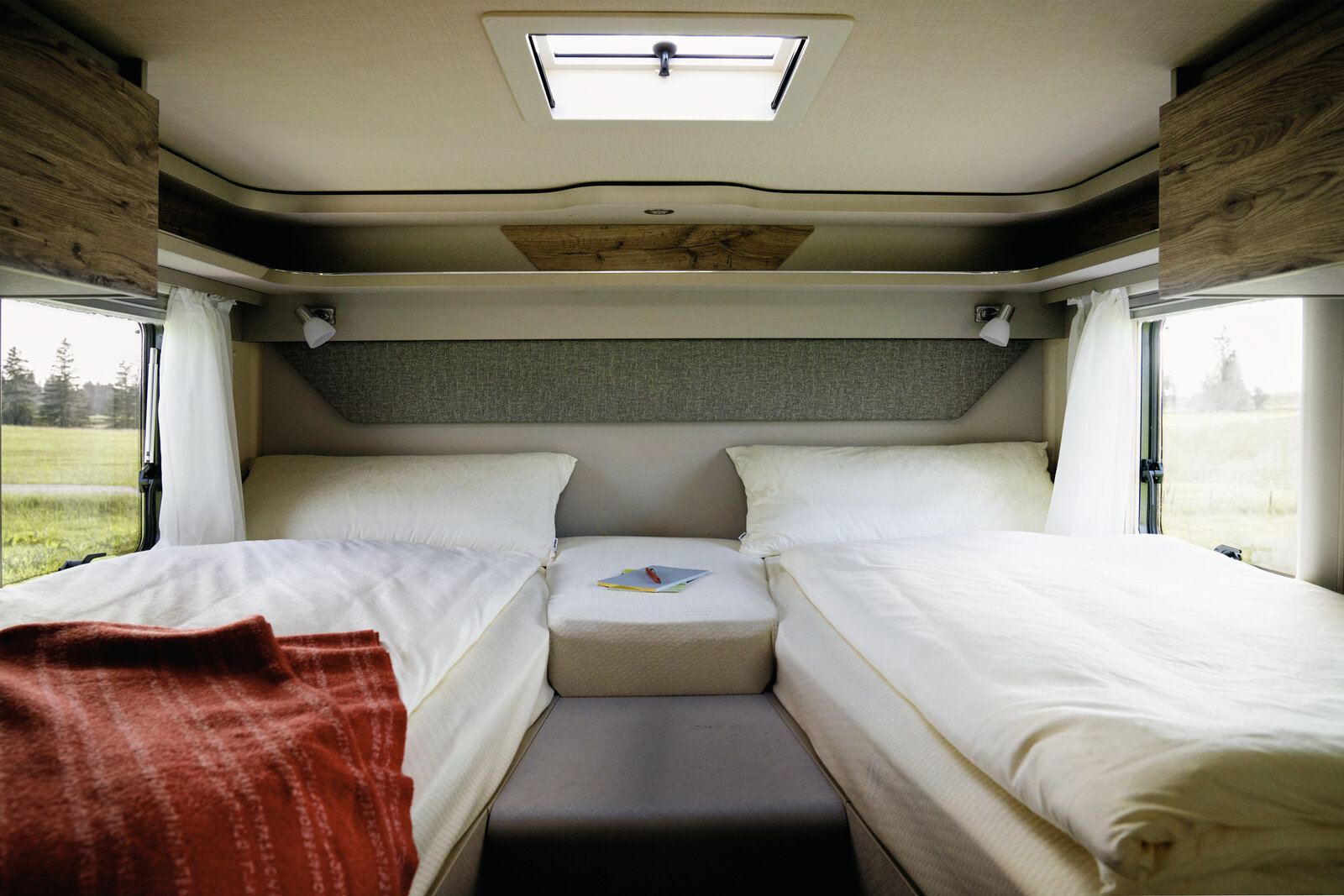

• Additional cushion between longitudinal single beds with integrated easy access

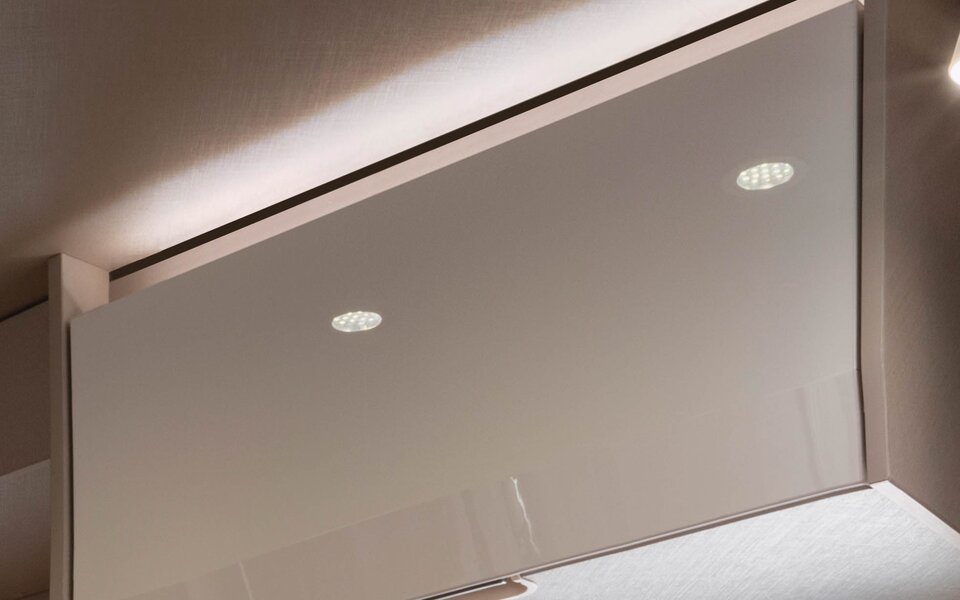

• Ambient lighting
• Full LED interior lighting
• LED tabletop lighting
• LED awning lighting

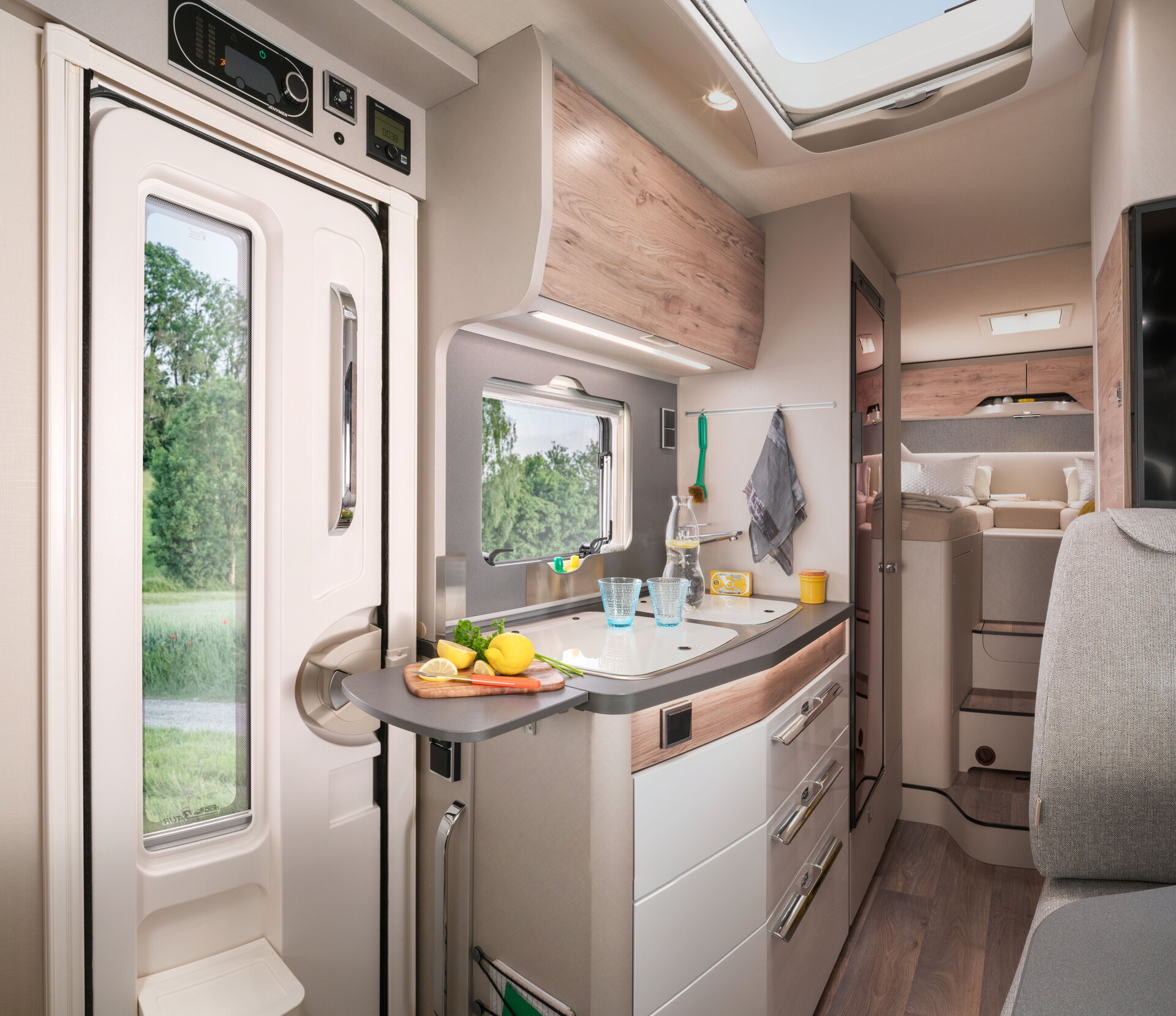

Kitchen

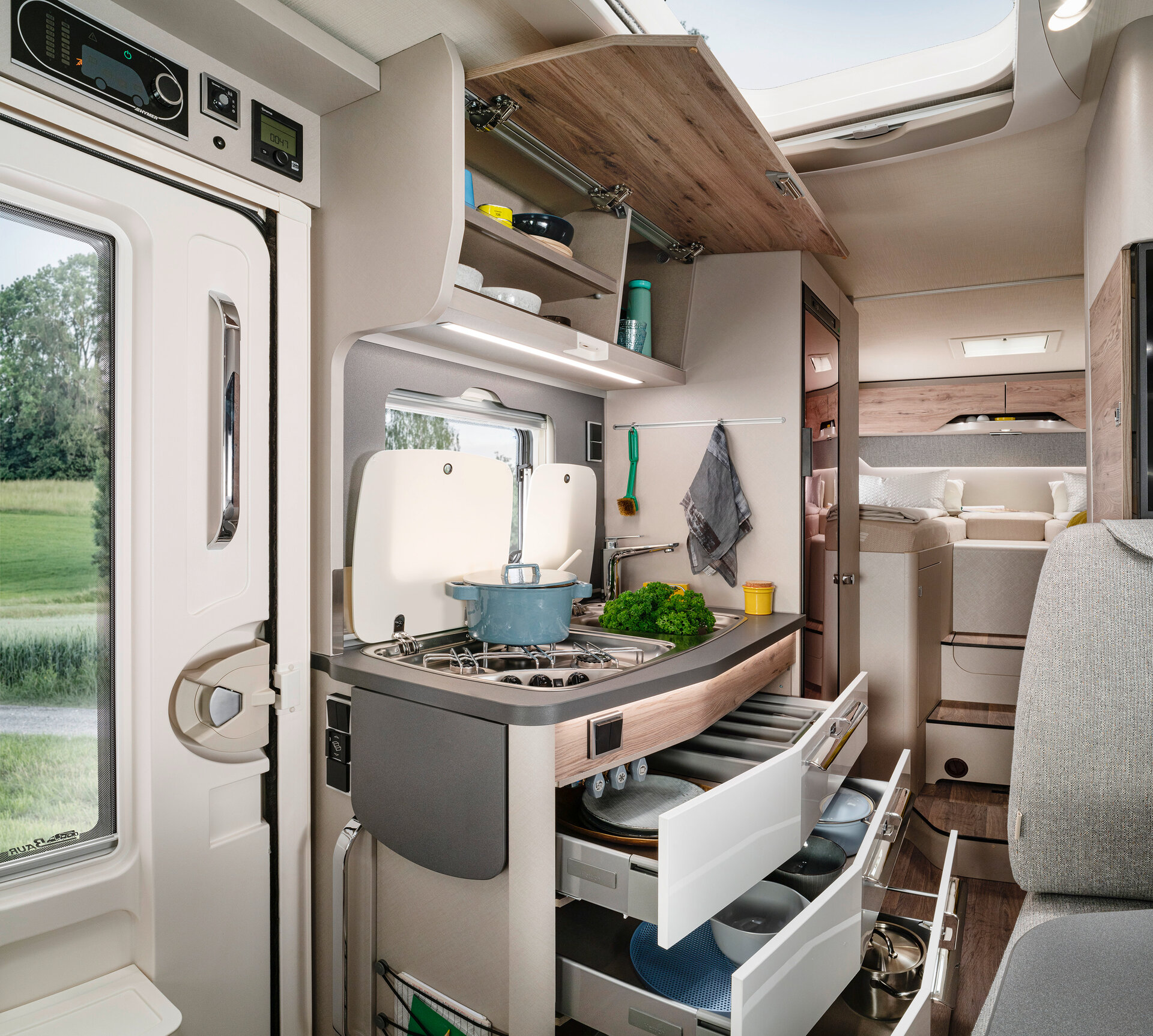

• Kitchen drawer with soft-close function and cutlery insert
• Freely arranged kitchen drawers, extra wide
• 142 l Smart-Tower fridge

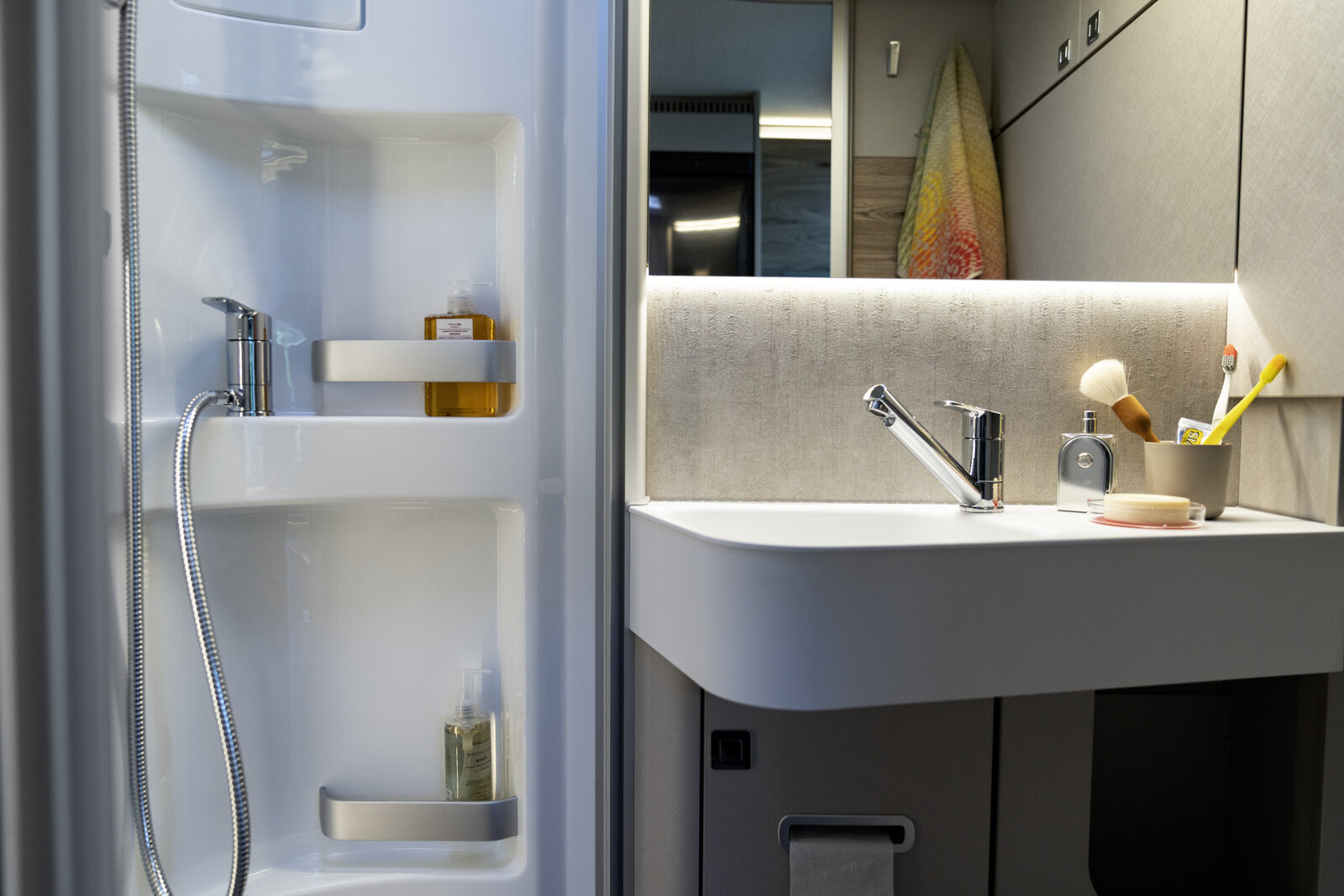

Bathroom

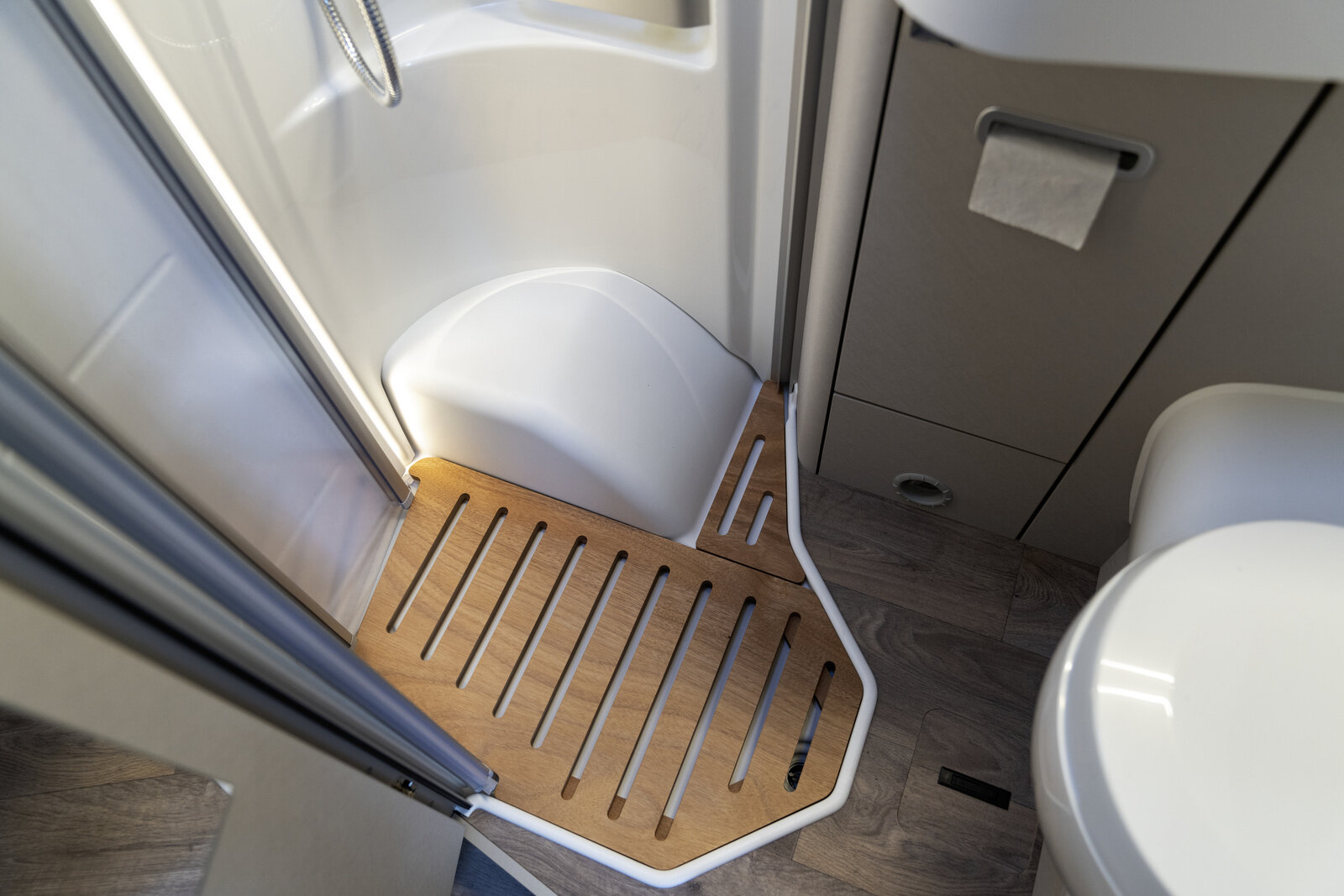

• Shower liner floor with wooden surface
• Skylight (frosted glass) for bathroom with blackout blinds and mosquito net, 40 x 40 cm

Installation and technology

• 6 kW gas-fired warm air heating with 10 l hot water boiler
• LCD heating keypad
• Cabin heating concept with enhanced warm air heating, including a heated dashboard in living areas
• Automatic gas cylinder exchange system with emergency sensor and IceEx
• Gas filter for automatic switching of gas cylinders
• Gas cylinder compartment accessed via external valve/door
• Additional sockets: 4 x 230 V / 1 x 12 V / 1 x Twin-USB (including kitchen wall cladding)
• Charge booster to safely charge a residential battery while driving (up to 70 A)
• Reinforced battery, 12 V, 95 Ah AGM
• 120 l fresh water tank, insulated and heated (20 l at the driving position)
• 90 l insulated and heated waste water tank

Multimedia

• Pre-fitted radio/TV including 12V and 230V sockets, 2 speakers in the cab, front bed, radio receiver and DVB-T2 aerial
• Reversing camera
• 32" TV bracket
• 32" Smart LED TV with built-in speakers, remote control, DVD drive, (DVB-T/C, DVB-S2) including tuner
• Digital Satellite Antenna, 65 cm

Fabrics and upholstery

• Furniture finish: Sauvignon oak with Tip Printed
• Fabric combination: corfu

Packages

• "Exsis Pure package (integrated)
