• Standard chassis: Fiat Ducato
• Front-wheel drive
• kW (hp): 103 (140)
• Tyre size: 225/75 R 16
• Length / width / height (cm): 599 / 208 / 270
• Overall height (pop-up roof open): 350
• Roof type: sleeping roof
• Standing height in living area (cm): 190
• Wheelbase (mm): 4035
• Mass in running order (-/+ 5 %) (kg)*: 3083 (2929 - 3237)*
• Manufacturer's specified optional equipment weight (kg)*: 58
• Maximum technically permissible laden mass (kg)*: 3500
• Technically permissible maximum towable mass (kg)*: 2000
• Number of seats permitted (including the driver's)*: 4
• Bed dimensions: front bed L x W (cm): 182 x 101 - 62
• Bed dimensions: back bed L x W (cm): 196 x 152 - 140
• Bed dimensions: sleeping roof L x W (cm): 209 x 143
• Sleeping places 4
• Refrigerator capacity (freezer compartment) (l): 90 (6.5)
• Standard heating: warm air, 4 kW
• Gas cylinder storage (filling weight): 1x 5 kg1x 11 kg
• Total fresh water tank capacity (l): 100
• Fresh water tank filling level (l): 20
• Waste water tank (l): 100
• Standard residential battery: 95 Ah (AGM)
• Electrical sockets: 230 V / 12 V / USB 4 / 2 / 1

Chassis/weight options

• Fiat Ducato 3,5 t - 2.2 MultiJet - 103 KW/140 HP - Euro 6D Final

Base

• 6G manual gearbox
• 19 l AdBlue tank
• Electrically adjustable/heated exterior mirror
• Electrically operated cab windows
• 16" alloy wheels with 225/75 R16 tyres, matt black
• Outdoor temperature display
• Toolkit
• Digital display with on-board computer
• Driver and passenger airbags
• Cup holder in the centre of the dashboard
• Seat belt warning device "Seat belt not fastened"
• Passenger-side storage compartment with cooling compartment cover for a 1.5 litre bottle
• Coaxial steering adjustment
• Breakdown kit (air compressor with extra valve)
• Water in diesel fuel sensor
• 1x double USB socket in the cab
• Power steering
• Seat base panels
• Cruise management
• Door storage compartments with integrated 1.5 l bottle holder
• Central locking with internal control and remote control
• Electric immobiliser
• ESC with HBA, ABS, ASR, LAC, MSR, Hill Start Assist, Traction Assist+, Crosswind Assist, Trailer Stability Control and Post-Collision Assist
• High-efficiency ESP
• "Start-Stop-System, including a smart generator

Body

• Living room windows with dark tint
• Black gutter over sliding door with integrated LED lighting
• Insulated bathroom window with aluminium frame
• Optimal thermal and noise insulation thanks to 16 mm closed-pore polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
• Insulated floors
• Rear door opening extends
• Electric entrance step
• Insulated windows with aluminium frames

Installation

• Folding table with the possibility of enlargement
• Cabin seats, armrests and seat bench upholstered in living area fabric
• Cab seats, swivel, with armrests, height and tilt adjustable
• Mosquito nets, pleated sliding door blinds
• Blackout living room with pleated blinds and mosquito net
• Vertically adjustable bed frame
• Pedestal with large storage
• Gas cylinder compartment for 2 gas cylinders
• Fixing lugs built into the floor and the back of the bed for ideal anchoring

Living room and bedroom + lighting

• Bedroom side panels with a premium lamination of heat and sound absorbing fabric
• Cold foam mattress for rear beds with Comfort bed slat frame
• Ambient lighting in living room and kitchen
• LED lighting

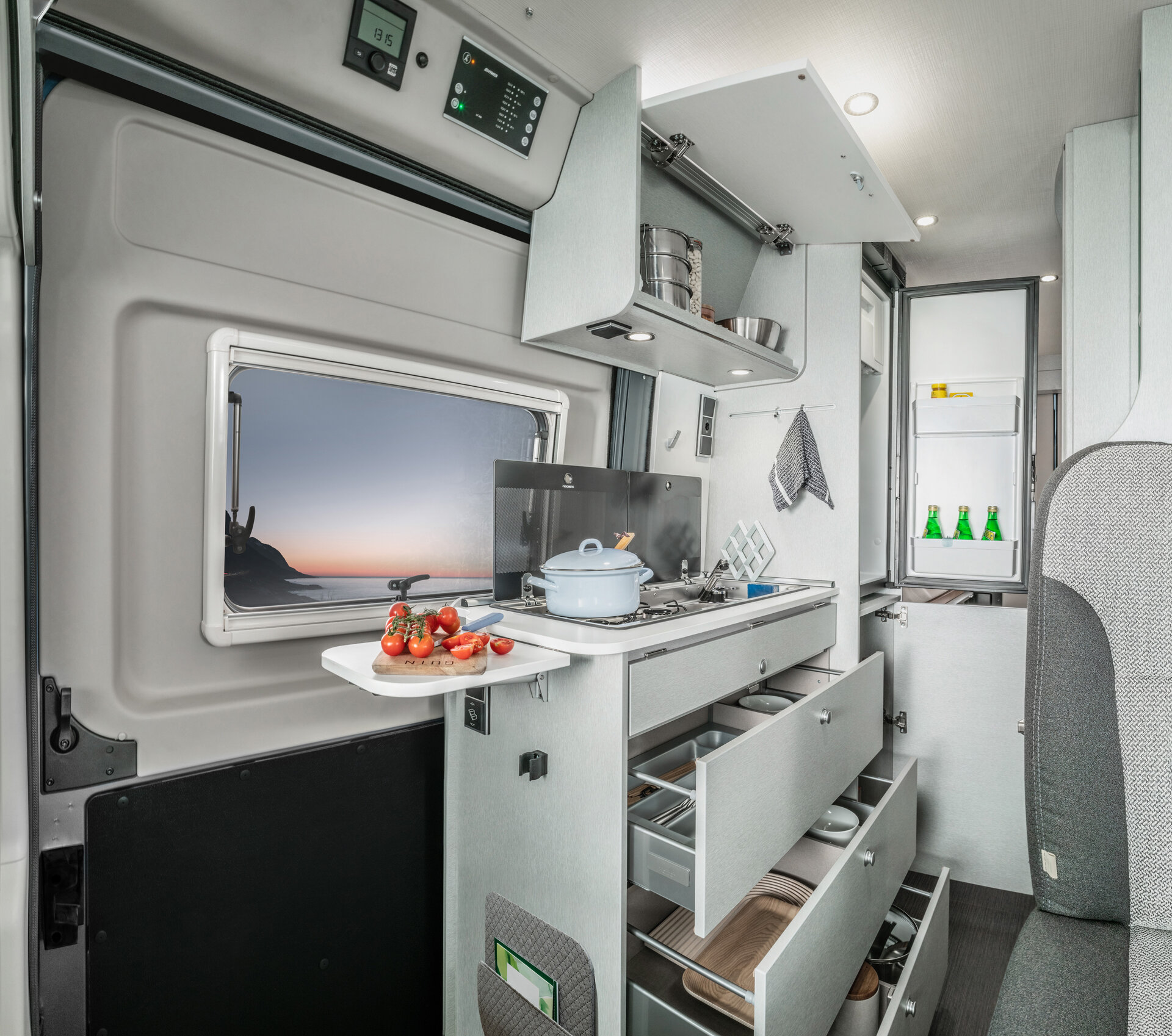

Kitchen

• Deep drawers with Premium pull-out drawers, including self-closing
• Combination hob and sink with glass lid (2 burner hob)
• 90 l compressor refrigerator (12 V or 230 V) including freezer compartment, with excellent refrigeration performance and silent night mode
• Extendable kitchen worktop

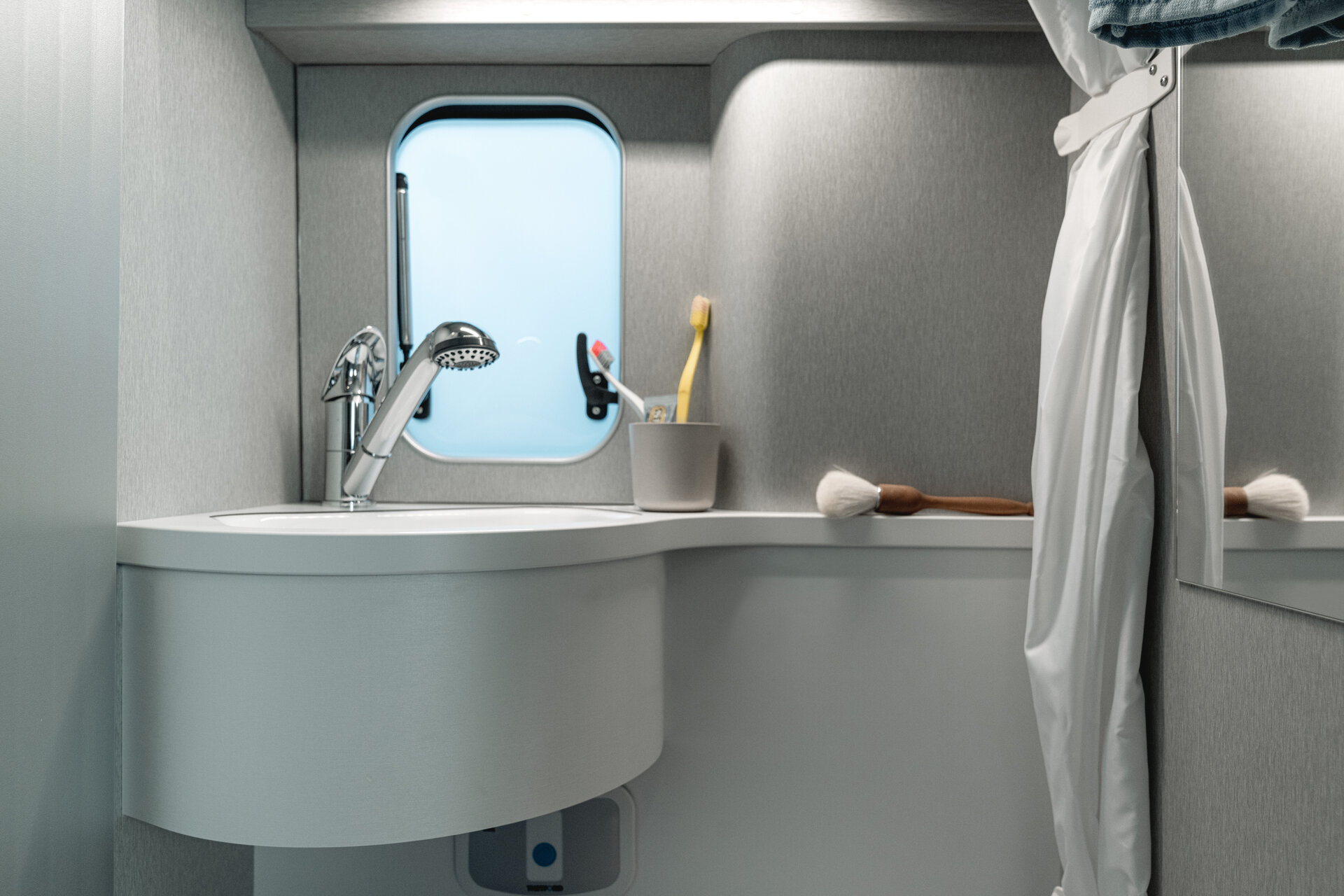

Bathroom

• Compact bathroom with door
• Cassette toilet with level indicator
• Mirror cabinet
• Shower tray with round duct
• Shower head holder with suction cup

Installation and technology

• Protective cover for the entrance step switch
• Heating LCD keypad
• Internal temperature sensor
• Insulated wastewater tank
• Clean water and waste water tank level indicator
• 95 Ah AGM residential battery with charger
• 4 kW warm air heating, including 10 l hot water boiler
• Charging booster for safe charging of a residential battery while driving (up to 70 A)
• 100 l fresh water tank, internal (20 l when driving)
• 100 l waste water tank (underfloor)
• 230 V external connector with earthing switch 230 V and 12 V

Package

• Free 600 Campus
