Chassis and engine:

• Standard chassis: Mercedes-Benz Sprinter 315 CDI
• Rear-wheel drive / all-wheel drive
• kW (HP) 110 (150)
• Euro VI-E emission standards
• Tyre size 235/65 R16 C

Vehicle dimensions:

• Length / width / height (cm) 593 / 206 / 276
• Standing height in living area (cm) 192
• Wheelbase (mm) 3665

Weight-related information:

• Mass of the vehicle in motion (-/+ 5%) (kg)* 2857 (2714 - 3000)*
• Manufacturer's specified mass of optional equipment (kg)* 304
• Maximum technically permissible laden mass (kg)* 3500
• Technically permissible maximum towable mass (kg)* 2000
• Number of seats permitted (including driver's)* 4

Technology:

• Roof type Sleeping roof
• Standard heating Diesel warm air, 6 kW
• Gas cylinder storage (filling weight) 1x 6 kg
• Total fresh water tank capacity (l) 100
• Fresh water tank filling level (l) 20
• Hot water tank (l) 10 l
• Waste water tank (l) 85
• Standard residential battery 80 Ah (LFP)
• Electrical sockets: 230 V / 12 V / USB 4 / 3 / 2

Interior:

• Bedroom dimensions: 3/4, 3/4: Rear bed L x W (cm) 195 x 135
• Bed dimensions: sleeping roof L x W (cm) 200 x 122
• 2 - 4 beds
• Refrigerator capacity (freezer compartment) (l) 90 (6.5)

Chassis / Weight options

• Mercedes-Benz Sprinter 3.5 t - 315 CDI - 110 KW/150 HP - Euro VI-E

Background

• Exterior colour: Arctic white
• 6-speed manual gearbox ECO Gear
• 93 l fuel tank
• 22 l AdBlue tank
• Adaptive brake light
• Automatic headlight control
• Electrically folding exterior mirrors
• Electrically adjustable and heated exterior mirrors
• Halogen H7 headlamps with clear glass technology
• Comfortable chassis suspension (vibration dampers, stabilisers, shock absorbers)
• Side-turn signals in exterior mirrors
• Daytime running lights integrated in the headlamps
• Trailer hitch, pre-prepared for installation
• Laminated glass windscreen
• 16″ steel wheels (silver) with wheel covers and all-season tyres
• Electric cab windows
• Electronic immobilisation
• Driver and passenger airbags
• Warning device for unfastened seat belts
• Entry handle, sliding door
• Keyless start (start-stop button for easy engine start)
• Central storage compartment cover on the dashboard
• Rudder, pitch and yaw adjustment
• Open shelf on passenger side
• Sun visor for cab seats, rotatable
• Electric supplementary heating with warm air
• Central locking with remote control
• ABS (Anti-lock Braking System) / ASR (Traction Control) / EBV (Electronic Brakeforce Distribution) and ESP (Electronic Stability Program)
• Active Brake Assist
• External temperature display
• Hill Start Assist System
• ECO start-stop function
• Headlight height adjustment
• Crosswind assistance
• Power steering

Body

• Design graphics: carbon fibre infill in windows (all surfaces around rear windows)
• Electric entrance step
• Optimal thermal and noise insulation thanks to 16 mm closed-pore polyethylene foam in the wall area and 23 mm XPS insulation in the roof area
• Insulated floors
• Extendable rear doors
• Skylight for bathroom, 28 x 28 cm
• Skylight for bedroom, 40 x 40 cm
• Living room skylight, 70 x 50 cm
• Insulated aluminium frame windows

Interior

• Mercedes-Benz comfort seats in the living area, height and tilt adjustable, swivel, with 2 armrests and integrated view
• Front seat group with 2 integrated 3-point seat belts
• All upper cabinets with soft-close function
• Convenient plungers with genuine leather loops on doors and drawers
• Folding table with the possibility of enlargement
• Retractable bed step with load compartment partition
• Mosquito net with a blanket for sliding doors
• Blankets and mosquito nets on all windows in the body structure (except bathroom)
• Wall panel with multifunctional rail system in seating and kitchen area
• Load securing rails with 4 adjustable rings
• Living and sleeping area + lighting
• Side walls in the bedroom with high quality heat and noise dampening material finish
• Innovative sleep comfort mattress with integrated disc spring system
• Separation curtain between bedroom and living room
• LED dimmable lighting with touch control
• LED reading lights with touch control (residential area)

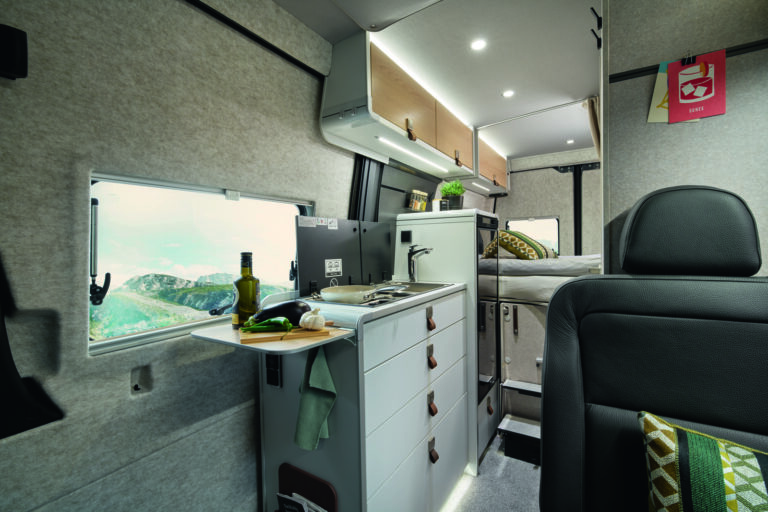

Kitchen

• Cooking/sink combination with glass lid (2-burner gas cooker) and high-quality single-lever mixer
• Deep drawers with high-quality rails, including self-closing
• Kitchen drawer with soft-close function and cutlery insert
• Extends the kitchen work surface
• 90 l compressor fridge (12 V or 230 V) with freezer compartment and silent night mode

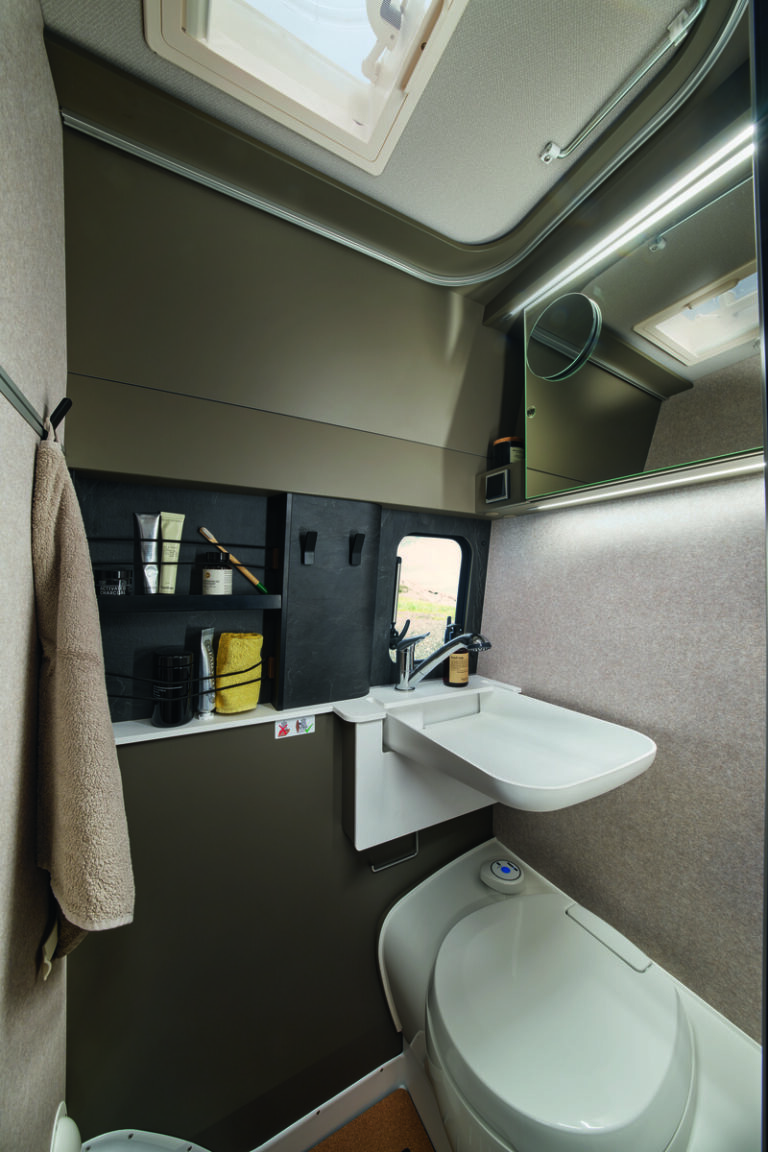

Bathroom

• Compact bathroom with door
• Design folding washbasin (made of solid surface material)
• Shower head holder with suction cup
• Cassette toilet with level indicator
• Mirror cabinet with mirror

Installation and technology

• 6 kW diesel warm air heating with 10 l hot water boiler and atmospheric pressure sensor (height kit)
• Internal temperature sensor
• LCD keypad for heating
• HYMER Smart Battery System 2.0 (80 Ah LFP) with optional charger
• Charging booster for safe charging of the residential battery while driving (up to 70 A)
• 230 V external connector with leakage circuit breaker for 230 V and 12 V
• 7″ touchscreen for convenient control and monitoring of smart vehicle functions
• HYMER Connect for smart control and monitoring of vehicle functions via the HYMER Connect app
• 100 l fresh water tank, internal (20 l when driving)
• 85 l waste water tank (underfloor mounted)
• Level indicator for fresh water and waste water tank
• Wastewater tank, insulated and heated
• Electric waste water outlet with switch on dashboard

Multimedia

• Sound installation with 4 speakers

Fabrics and upholstery

• Furniture finish: Ivy Green
• Fabric combination: Indiana
